Optex AP-360B(C) Indoor Recessed Mount PIR Detector User Manual

1. Pambuka

The Optex AP-360B(C) is an indoor recessed mount Passive Infrared (PIR) detector designed for discreet motion detection in various indoor environments. This device utilizes passive infrared technology to detect movement within a 360-degree area, providing reliable security monitoring. Its compact design allows for seamless integration into ceilings, making it suitable for large rooms or corner areas where traditional sensors might be conspicuous.

This manual provides essential information for the proper installation, operation, and maintenance of your AP-360B(C) detector. Please read it thoroughly before installation and retain it for future reference.

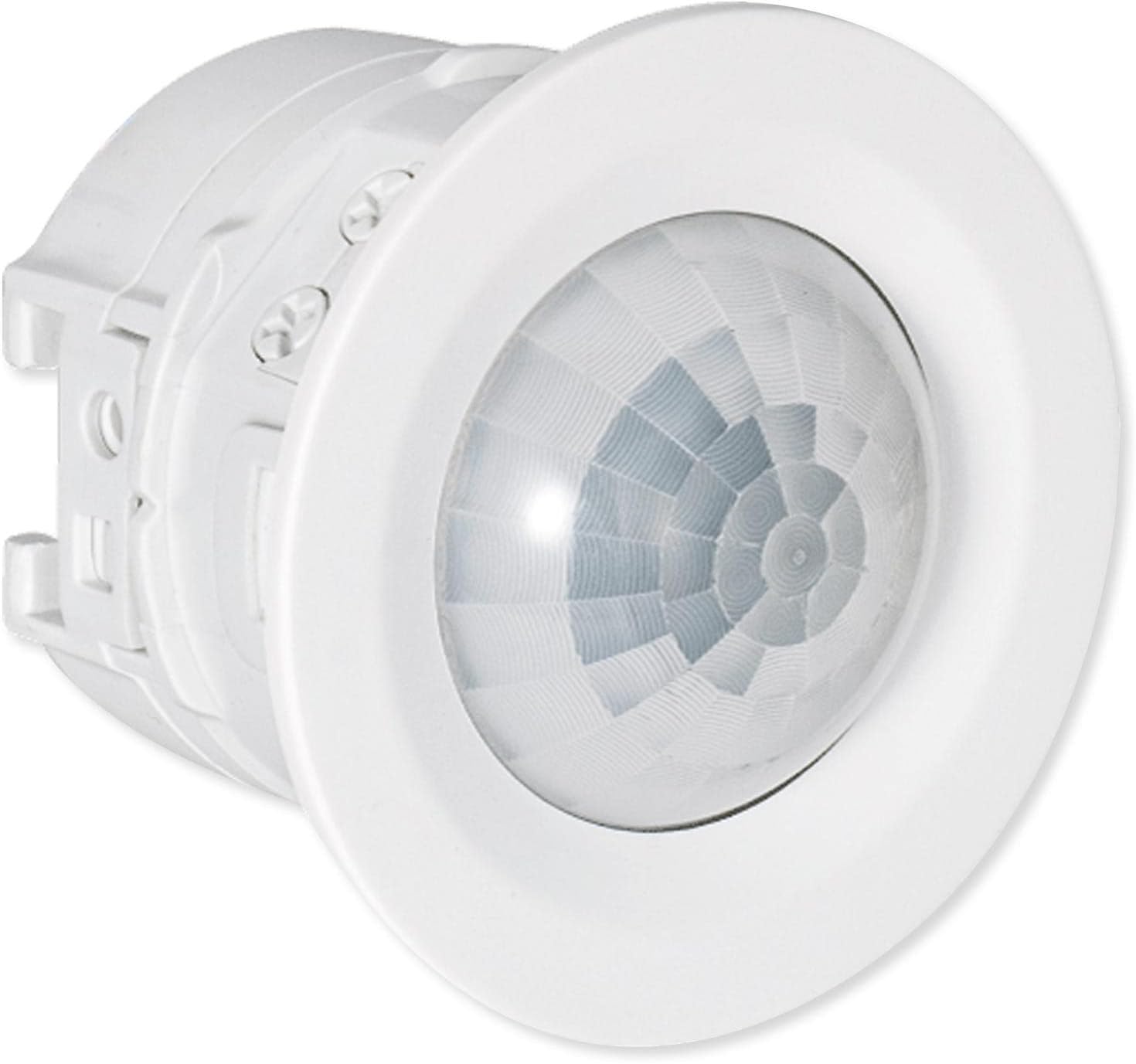

Gambar 1: Ngarep view of the Optex AP-360B(C) Indoor Recessed Mount PIR Detector. This image shows the compact, circular design of the detector, which is intended for discreet ceiling installation.

2. Produk Liwatview

Fitur utama:

• 360-degree detection area, covering up to 20 feet (6 meters) at a mounting height of 14 feet 9 inches (4.5 meters).
• Compact design for discreet, recessed ceiling installation.
• Selectable detection sensitivity: High, Medium, and Low.
• Integrasi tamper switch to notify if the device is tampedan karo.
• Wired connection for reliable power and signal transmission.

Gambar 2: The Optex AP-360B(C) detector held in a hand, illustrating its small and compact size. This image emphasizes the discreet nature of the device for recessed mounting.

3. Persiyapan lan Instalasi

The AP-360B(C) detector is designed for recessed ceiling mount installation. It can be installed directly into a ceiling opening or with an 86-type box.

Langkah Instalasi:

1. Pilih Lokasi Pemasangan: Select a ceiling location that provides the desired 360-degree coverage. The optimal mounting height is between 8 feet 2 inches (2.5 meters) and 14 feet 9 inches (4.5 meters). Avoid placing the detector near heat sources, direct sunlight, or areas with strong air currents.
2. Siapke Lubang Pemasangan: Create an appropriate opening in the ceiling for the detector. If using an 86-type box, ensure it is securely installed according to local electrical codes.
3. Wiring: Connect the power supply (9.5 to 16 V DC) and alarm output wires to the detector terminals. Ensure all connections are secure and correctly polarized. The tamper switch also requires wiring to your alarm system.
4. Pemasangan: Insert the detector into the prepared opening or attach it to the 86-type box using the provided mounting bezel. Ensure it is flush with the ceiling surface for discreet installation.
5. Daya On: Apply power to the detector. The LED indicator will blink during the warm-up period (approximately 60 seconds).

Gambar 3: Diagram illustrating the installation of the Optex AP-360B(C) detector using an 86-type box and mounting bezel. This visual guide shows how the detector integrates with standard electrical boxes for ceiling installation.

4. Instruksi Operasi

Area Deteksi:

The AP-360B(C) provides a 360-degree detection pattern. At a mounting height of 14 feet 9 inches (4.5 meters), it covers a diameter of 20 feet (6 meters). The detection area is conical, extending outwards from the ceiling.

Gambar 4: A diagram illustrating the 360-degree conical detection area of the Optex AP-360B(C) detector when mounted on a ceiling. The red shaded area indicates the coverage zone within a room, highlighting its effectiveness in corner areas.

Setelan sensitivitas:

The detector features selectable sensitivity levels: High, Medium, and Low. Adjust the sensitivity based on the environment and desired detection performance. Higher sensitivity is suitable for detecting subtle movements, while lower sensitivity can help reduce false alarms in busy areas.

Indikator LED:

• Pemanasan: Blinking upon power on (approx. 60 seconds).
• Siaga: Mati.
• weker: Solid on for the duration of the alarm cycle.

Alarm Cycle:

The alarm output duration is variable, ranging from 2 seconds to 120 seconds, depending on configuration.

5. Pangopènan

To ensure optimal performance and longevity of your Optex AP-360B(C) detector, follow these maintenance guidelines:

• Reresik: Periodically clean the detector lens with a soft, dry cloth. Avoid using abrasive cleaners or solvents, as these can damage the lens and affect detection performance.
• Pemriksaan: Regularly inspect the detector for any signs of physical damage or loose connections.
• Testing: Test the detector periodically to ensure it is functioning correctly and communicating with your alarm system. Refer to your alarm system's manual for testing procedures.

6. Ngatasi masalah

If you encounter issues with your AP-360B(C) detector, refer to the following troubleshooting tips:

• Ora Deteksi:
  • Check power supply to the detector.
  • Priksa manawa sambungan kabel aman.
  • Ensure the detection area is clear of obstructions.
  • Increase sensitivity setting if necessary.
• Weker palsu:
  • Reduce sensitivity setting.
  • Check for heat sources (e.g., HVAC vents, direct sunlight) or strong air currents within the detection area.
  • Ensure the detector is not pointed at windows where external movement could trigger it.
• Tamper Switch Alert:
  • Ensure the detector casing is securely attached and properly seated in its mounting.
  • Priksa tamper switch wiring for continuity.

If problems persist, contact technical support.

7. Spesifikasi

8. Warranty lan Dhukungan

Informasi Garansi:

The Optex AP-360B(C) detector comes with a 2-year limited warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims.

Dhukungan Teknis:

For technical assistance, troubleshooting beyond this manual, or warranty inquiries, please contact Optex customer support through their official websitus utawa informasi kontak sing kasedhiya karo tuku.
