Optex Black Tabletop Tripod with 2-in-1 Ballhead and Built-in Smartphone Mount User Manual

1. Pambuka

Matur nuwun kanggo tukuasing the Optex Black Tabletop Tripod. This versatile tripod features a 2-in-1 mounting system, allowing you to securely attach both cameras and smartphones. Its compact design and adjustable ball head make it an ideal accessory for various photography and videography needs. Please read this manual carefully before use to ensure proper operation and longevity of your product.

2. Fitur Produk

• 2-in-1 Mounting System: Integrated mount for both cameras and smartphones.
• Kepala Bal: Fully articulating ball head for flexible positioning.
• Kaki sing bisa diatur: 5 micro leg adjustments for height and angle.
• Desain kompak: Ideal for tabletop use and portability.
• Kapasitas bobot: Supports devices up to 3 kg (6.6 lbs).

3. Isi Paket

• Optex Black Tabletop Tripod with integrated 2-in-1 Ballhead and Smartphone Mount

4. Identifikasi Komponen

Familiarize yourself with the different parts of your Optex Tabletop Tripod:

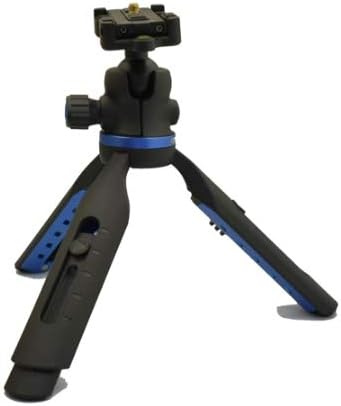

Figure 1: Tripod with camera mounting plate visible. This image shows the tripod in its compact form, with the standard camera screw mount at the top. The blue accents on the legs and ball head adjustment knob are visible.

Figure 2: Tripod with smartphone mount engaged. This image displays the tripod with the integrated smartphone holder extended and ready for use. The ball head and leg adjustment mechanisms are also clearly visible.

1. Sekrup Pemasangan Kamera: Standard 1/4-inch screw for cameras.
2. Pemegang Smartphone: Integrated spring-loaded clamp for smartphones.
3. Ball Head Adjustment Knob: Loosen to adjust the angle of the mounted device, tighten to secure.
4. Leg Release Buttons: Press to adjust leg angles and height.
5. Kaki Tripod: Provide stability, with 5 micro adjustments.

5. Setup

5.1 Mbukak Tripod

1. Gently spread the tripod legs outwards until they click into their initial position.
2. To adjust the leg angle, press the leg release button located on each leg and move the leg to the desired position. Release the button to lock the leg. There are 5 micro adjustments available.

5.2 Attaching a Camera

1. Ensure the smartphone holder is folded down, revealing the standard 1/4-inch camera mounting screw.
2. Align the camera's tripod socket with the mounting screw.
3. Rotate the camera clockwise onto the screw until it is securely fastened. Do not overtighten.

5.3 Attaching a Smartphone

1. Lift the integrated smartphone holder upwards until it locks into position.
2. Gently pull the top jaw of the smartphone holder upwards to open the clamp.
3. Lebokake smartphone menyang clamp, ensuring it is centered and securely held by the spring tension.
4. Release the top jaw slowly to allow it to grip the smartphone.

6. Operating the Tripod

6.1 Nyetel Kepala Bal

1. To change the angle of your mounted device, loosen the ball head adjustment knob (blue knob).
2. Position your camera or smartphone to the desired angle.
3. Tighten the ball head adjustment knob firmly to secure the device in place.

6.2 Adjusting Leg Height and Angle

1. Each leg has a release button. Press this button to unlock the leg's angle.
2. Adjust the leg to one of the 5 available micro-adjustment positions.
3. Release the button to lock the leg securely. Ensure all legs are locked before placing a device on the tripod.

7. Pangopènan

• Reresik: Wipe the tripod with a soft, dry cloth. For stubborn dirt, a slightly damp kain bisa digunakake, banjur langsung digaringake. Aja nggunakake bahan kimia sing atos utawa pembersih sing abrasif.
• Panyimpenan: Simpen tripod ing panggonan sing adhem, garing, lan adoh saka sinar srengenge langsung lan suhu sing ekstrem.
• Pemriksaan: Priksa kabeh sekrup lan bagean sing obah kanthi periodik kanggo kenceng lan operasi sing lancar.

8. Ngatasi masalah

9. Spesifikasi

• Model: OBTT20
• Merk: Optex
• Watesan bobot: 3 Kilogram (6.6 lbs)
• Piranti sing kompatibel: Kamera, Smartphone
• Tipe Kepala Tripod: Kepala Bola
• Number of Leg Sections: 5 (micro adjustments)
• UPC: 059497264594

10. Warranty lan Dhukungan

For warranty information and customer support, please refer to the documentation provided at the time of purchase or visit the official Optex websitus. Simpen bukti tuku kanggo klaim garansi.
