Standard Motor Products TL104 Trunk Lock Cylinder Instruction Manual

1. Pambuka

This manual provides essential instructions for the proper installation, operation, and maintenance of your Standard Motor Products TL104 Trunk Lock Cylinder. Please read this manual thoroughly before beginning any procedures to ensure safe and correct usage. Retain this manual for future reference.

Peringatan Keamanan: This product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Always handle with care and wash hands after use. Consult local regulations for proper disposal.

2. Produk Liwatview

The Standard Motor Products TL104 is a replacement trunk lock cylinder designed for automotive applications. It provides secure access to your vehicle's trunk using a key mechanism. This unit is engineered for direct fit in compatible vehicles, ensuring reliable performance.

Komponen sing kalebu:

• 1x Trunk Lock Cylinder
• 2x Kunci
• Mounting hardware (as applicable)

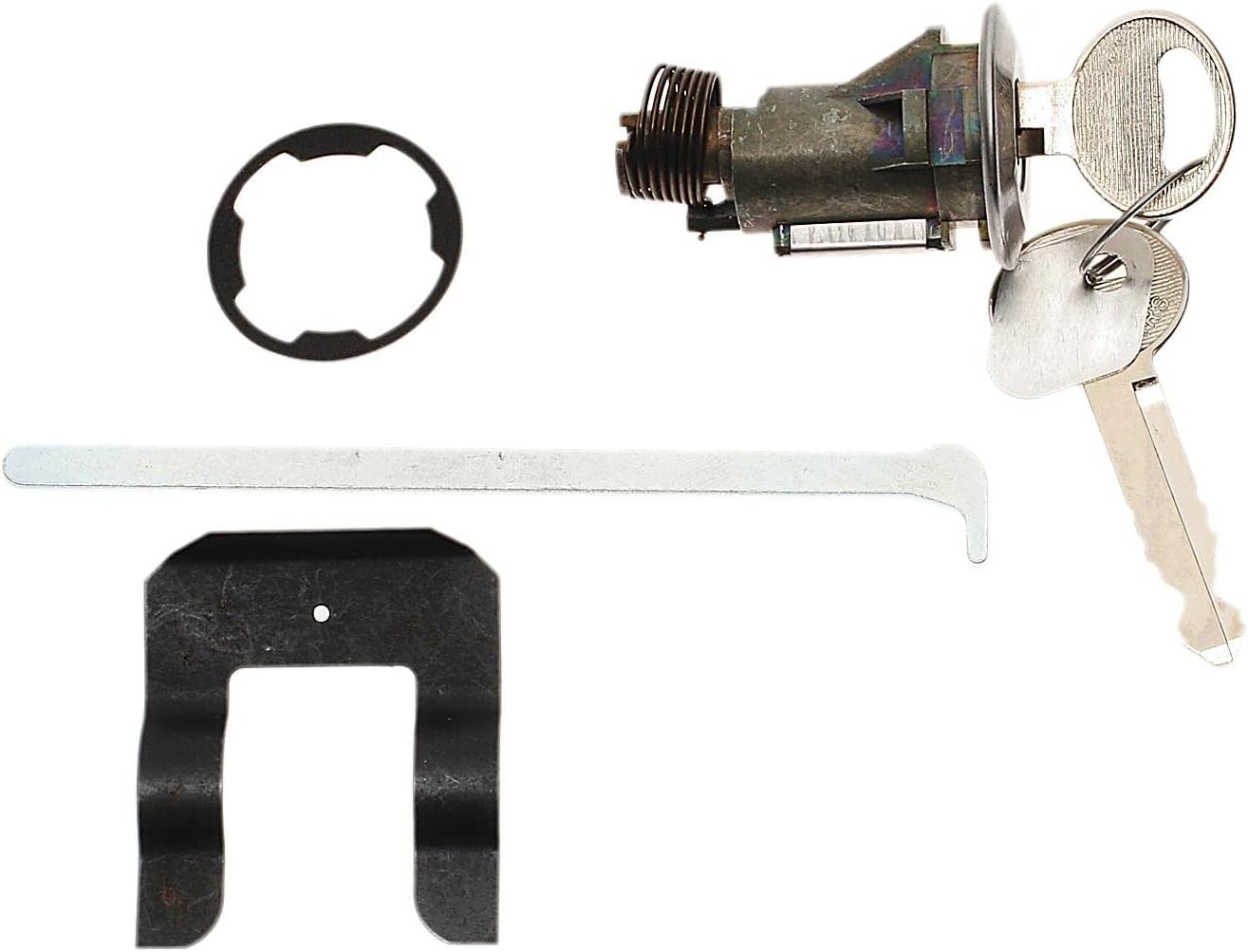

Gambar produk:

3. Instalasi

Installation of the TL104 Trunk Lock Cylinder typically involves replacing an existing lock. While many users find this process straightforward, professional installation is recommended if you are unfamiliar with automotive repair procedures.

Piranti sing Dibutuhake (Bisa Beda-beda):

• Obeng (Phillips lan/utawa obeng pipih)
• Wrenches or sockets (if applicable)
• tang
• Lubricant (e.g., silicone spray)
• Cutting tool (if tailpiece modification is required)

Langkah Instalasi:

1. Safety First: Priksa manawa kendaraan diparkir ing permukaan sing rata kanthi mesin mati lan rem parkir aktif.
2. Access the Lock: Open the trunk and locate the existing lock cylinder assembly. You may need to remove interior trim panels to gain access.
3. Putus Sambungan: Carefully disconnect any rods or electrical connectors attached to the old lock cylinder.
4. Copot Silinder Lawas: Unfasten the retaining clips or screws holding the old lock cylinder in place and remove it.
5. Prepare New Cylinder: Compare the new TL104 cylinder with the old one. In some applications, the tailpiece (the rod extending from the back of the cylinder) may need to be cut to the correct length to match the original. Ensure the new cylinder's orientation matches the old one.
6. Pasang Silinder Anyar: Insert the TL104 into the mounting hole. Secure it with the provided retaining clips or screws.
7. Sambungake maneh Linkage: Reattach any rods or electrical connectors to the new lock cylinder. Ensure all connections are secure and move freely.
8. Tes operasi: Before reassembling trim, test the lock cylinder with the new keys to ensure it locks and unlocks the trunk smoothly.
9. Ngumpul maneh: Pasang maneh panel trim sing wis dibusak.

4. Instruksi Operasi

Operating the Standard Motor Products TL104 Trunk Lock Cylinder is straightforward:

1. Kanggo mbukak kunci: Insert the provided key into the keyway of the lock cylinder. Turn the key clockwise (or counter-clockwise, depending on the vehicle's mechanism) until the trunk latch disengages.
2. Kanggo Ngunci: Close the trunk lid. Insert the key into the keyway and turn it in the opposite direction used for unlocking until the trunk latch engages securely. Remove the key.

Always ensure the key is fully inserted before turning to prevent damage to the key or the lock cylinder.

5. Pangopènan

Proper maintenance can extend the life and ensure the smooth operation of your trunk lock cylinder:

• Lubrication: Periodically apply a small amount of graphite lubricant or a silicone-based spray lubricant into the keyway. Avoid using oil-based lubricants as they can attract dirt and debris.
• Reresik: Keep the exterior of the lock cylinder clean from dirt, dust, and road grime. Use a soft cloth and mild automotive cleaner if necessary.
• Perawatan kunci: Avoid using bent or damaged keys, as this can damage the internal tumblers of the lock cylinder.

6. Ngatasi masalah

If you encounter issues with your TL104 Trunk Lock Cylinder, consider the following:

• Kuncine ora muter:
  • Priksa manawa kunci wis dilebokake kanthi lengkap.
  • Apply lubricant to the keyway and gently try to turn the key.
  • Check if the key is bent or damaged. Try the spare key if available.
  • Verify there are no obstructions in the keyway.
• Trunk Does Not Latch/Unlatch:
  • Check the linkage connecting the lock cylinder to the trunk latch mechanism. Ensure it is properly connected and not bent or obstructed.
  • Inspect the trunk latch itself for any damage or obstructions.
  • Ensure the tailpiece of the lock cylinder is correctly aligned and engaging with the linkage.
• Sticking Lock:
  • Apply lubricant to the keyway and work the key in and out several times.
  • Clean any visible dirt or debris from the keyway.

If problems persist after attempting these troubleshooting steps, it is recommended to consult a qualified automotive technician.

7. Spesifikasi

8. Warranty lan Dhukungan

Specific warranty information for the Standard Motor Products TL104 Trunk Lock Cylinder is not provided in this manual. For details regarding warranty coverage, terms, and conditions, please refer to the product packaging or contact Standard Motor Products directly through their official websitus utawa saluran layanan pelanggan.

For technical support or further assistance, please visit the Standard Motor Products website or consult a certified automotive technician.
