FDW Lift Top Coffee Table 47-inch (Brown)

1. Pambuka lan Swaraview

This manual provides instructions for the assembly, operation, and maintenance of your FDW Lift Top Coffee Table. This versatile coffee table features a lift-top mechanism, a hidden storage compartment, and an additional open storage shelf. It is designed for use in living rooms and reception areas, offering both functionality and aesthetic appeal.

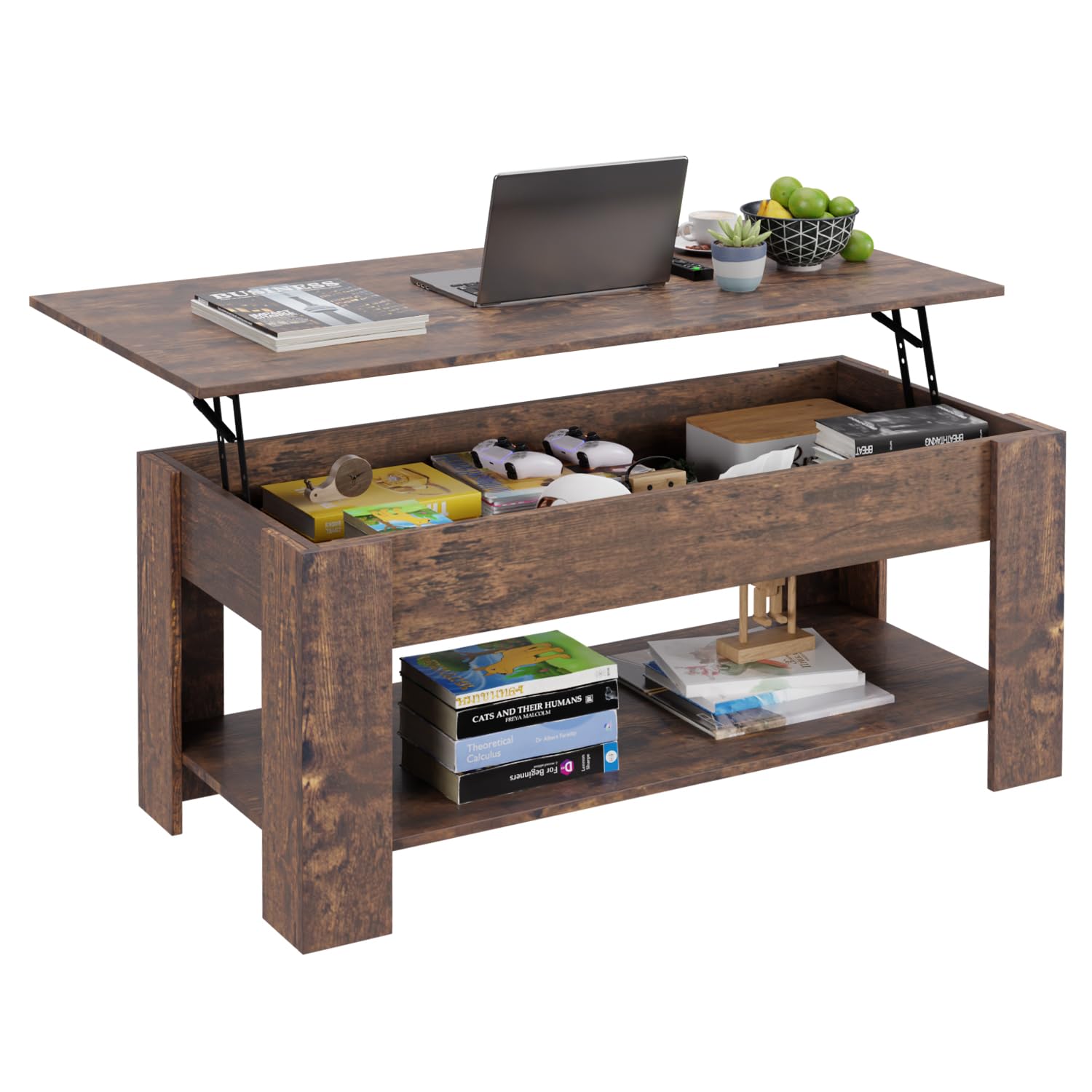

Image 1.1: The FDW Lift Top Coffee Table with its top raised, showcasing the hidden compartment and open shelf. A laptop is placed on the lifted surface.

2. Informasi Safety

• Always use two hands when operating the lift-top mechanism to prevent injury and ensure stable movement.
• Do not place heavy objects on the lifted tabletop to avoid instability or damage to the mechanism.
• Ensure the table is properly assembled and placed on a stable, level surface to prevent tipping.
• Keep fingers and other body parts clear of the hidden compartment and lift mechanism when opening and closing the tabletop.

3. Fitur Produk

• Hidden Compartment and Storage Shelf: Features a discreet storage area beneath the lift-top and an additional open shelf for organizing items.
• Water-Proof & Anti-Scratch Surface: Constructed with materials resistant to spills and scratches for enhanced durability and easy cleaning.
• Soft-Close/Open Mechanism: The lift-top operates smoothly and quietly, preventing abrupt movements.
• Melamine Veneer Tabletop: Provides an elegant finish that is resistant to stains and wear.
• Thick & Durable Material: Built with robust construction to support various items and ensure long-term use.

Image 3.1: Detail of the soft-close/open mechanism, highlighting its smooth operation.

Image 3.2: Visual representation of the table's waterproof surface and 0.6-inch thick material.

4. Persiyapan lan Majelis

The FDW Lift Top Coffee Table requires assembly. Detailed installation steps and necessary tools are included in the product package. Please follow the provided instructions carefully.

• Preparation: Unpack all components and hardware. Verify all parts are present and undamaged. Lay out pieces on a soft, clean surface like a carpet to prevent scratches.
• Piranti: While basic tools are provided, a powered screwdriver is highly recommended to expedite assembly and reduce effort, especially for driving screws into pre-drilled starter holes.
• Hydraulic Arm Installation: The installation of the hydraulic arms for the lift-top mechanism can be challenging. It is recommended to have two people for this step: one to hold the tabletop in position while the other secures the arms. If needed, temporarily unscrew one end of the hydraulic rod for better access during screw placement, then re-attach it.
• Penjajaran Bolongan: In rare cases, some pre-drilled holes may require minor adjustment. If a hole is slightly misaligned, a drill bit can be used to correct it before inserting screws.

Image 4.1: The coffee table in a living room setting, emphasizing ease of installation with included tools and instructions.

5. Instruksi Operasi

The lift-top mechanism allows you to raise the tabletop to a comfortable height for dining, working, or other activities, revealing a hidden storage compartment.

• To Lift the Tabletop: Grasp the tabletop with both hands, applying even force, and gently lift upwards. The hydraulic mechanism will assist in raising the top smoothly and quietly.
• To Lower the Tabletop: Grasp the tabletop with both hands, applying even force, and gently push downwards. The soft-close mechanism will ensure a controlled and quiet descent. Avoid pushing only on one side, as this may cause the lid to bind.
• Ngakses Panyimpenan sing Didhelikake: The hidden compartment becomes accessible when the tabletop is in the raised position.

Image 5.1: Illustration of the lift-top design, showing the table in both closed and open positions.

Image 5.2: The large storage space within the hidden compartment, suitable for various items.

6. Pangopènan

To ensure the longevity and appearance of your FDW Lift Top Coffee Table, follow these simple maintenance guidelines:

• Reresik: The melamine veneer tabletop is designed for easy cleaning. Wipe spills immediately with a soft, damp kain. Ngindhari pembersih abrasif utawa bahan kimia kasar sing bisa ngrusak finish.
• Proteksi: While the surface is anti-scratch, using coasters for drinks and placemats for hot items is recommended to further protect the tabletop.
• Perawatan Mekanisme: Periodically check the lift mechanism for smooth operation. If any stiffness occurs, a small amount of silicone-based lubricant can be applied to moving parts, avoiding contact with wood surfaces.
• Integritas Struktural: Priksa kabeh sekrup lan pengikat kanthi periodik kanggo mesthekake yen wis kenceng. Kencengake maneh yen perlu kanggo njaga stabilitas.

7. Ngatasi masalah

Yen sampeyan nemoni masalah karo meja kopi, waca solusi umum ing ngisor iki:

8. Spesifikasi

Image 8.1: Detailed dimensions of the coffee table.

9. Warranty lan Dhukungan

For warranty information or customer support, please refer to the documentation included with your purchase or contact FDW customer service directly. Keep your purchase receipt for any warranty claims.
