Generic TWW95-95 Quart Dual Zone Portable Car Refrigerator User Manual

1. Pambuka

Thank you for choosing the Generic TWW95-95 Quart Dual Zone Portable Car Refrigerator. This appliance is designed for versatile use, offering both refrigeration and freezing capabilities with individual temperature control in its dual compartments. It is suitable for automotive and household applications, making it ideal for road trips, camping, and other outdoor activities. Please read this manual thoroughly before operation to ensure proper use, maintenance, and safety.

Key features of your TWW95 refrigerator include:

• Kompartemen Dual: Independent temperature control for each zone, ranging from -4°F to 68°F (-20°C to 20°C).
• Desain portabel: Equipped with large wheels and a heavy-duty telescopic handle for easy transport.
• Pilihan Daya Fleksibel: Compatible with 12V/24V DC for vehicles and 100-240V AC for household use.
• Sistem proteksi baterei: Three-level system to prevent vehicle battery drain.
• Konstruksi awet: Shock-resistant design suitable for various terrains, safe for operation at angles less than 45 degrees.
• Fitur sing trep: Reversible/detachable door, drainage plugs, LED interior lights, and a digital display for temperature control.

2. Informasi Safety

Please observe the following safety precautions to prevent injury and damage to the appliance:

• Priksa manawa sumber daya voltage cocog karo spesifikasi kulkas kasebut.
• Do not operate the appliance if the power cord is damaged. Contact qualified service personnel for repair.
• Tansah bukaan ventilasi saka alangan.
• Aja nggunakake piranti listrik ing njero kulkas kajaba yen disaranake dening pabrike.
• Aja nyelehake kulkas ing sinar srengenge langsung utawa cedhak karo sumber panas.
• Aja nyemplungake kulkas ing banyu utawa nyedhiyakake udan deres.
• Tansah pedhot sumber daya sadurunge ngresiki utawa nindakake pangopènan.
• Piranti iki ora dimaksudake kanggo digunakake dening wong (kalebu bocah-bocah) sing kurang kemampuan fisik, sensori utawa mental, utawa kurang pengalaman lan kawruh, kajaba wis diwenehi pengawasan utawa instruksi babagan panggunaan piranti kasebut dening wong sing tanggung jawab kanggo safety.

3. Produk Liwatview

Sinau luwih lengkap babagan komponen lan fitur kulkas portabel sampeyan.

Gambar 3.1: Key Features and Components. This image highlights the integrated bottle opener, robust handles, dual-opening lids, versatile power input options (12V/24V DC, AC, and optional solar), a built-in cutting board, a digital temperature display, and internal wire storage baskets.

Gambar 3.2: Sisih View with Portability Features. This image displays the refrigerator from the side, emphasizing its large, durable wheels and the extendable telescopic handle designed for easy transport. A separate wire storage basket is also shown, indicating an included accessory.

Gambar 3.3: Easy Portability with Non-slip Handle. This image shows a user effortlessly pulling the portable refrigerator across uneven terrain, demonstrating the effectiveness of its non-slip telescopic handle for convenient transportation.

Gambar 3.4: Anti-Vibration and Incline Operation. This diagram illustrates the refrigerator's robust design, highlighting its ability to operate safely and maintain stability even when inclined up to 45 degrees, making it suitable for rough road conditions.

Gambar 3.5: Low Noise Operation. This image demonstrates the refrigerator's quiet operation, indicating a noise level below 45dB, which is comparable to a whisper and significantly quieter than normal conversation or car driving sounds.

4. Setup

4.1 Mbukak kemasan

1. Kasebut kanthi teliti, mbusak kulkas saka kemasan.
2. Copot kabeh bahan pengepakan, kalebu film utawa kaset pelindung.
3. Inspect the appliance for any signs of damage. If damaged, do not operate and contact your retailer.

4.2 Panggonan pisanan

• Selehake kulkas ing permukaan sing rata lan stabil.
• Priksa manawa ana ventilasi sing cukup ing sekitar unit (minimal jarak 10 cm ing kabeh sisih).
• Avoid placing it in direct sunlight or near heat-emitting appliances.

4.3 Sambungan Daya

The refrigerator can be powered by either DC (12V/24V) or AC (100-240V).

• Daya DC (Kendaraan): Sambungake kabel daya DC menyang port input DC kulkas banjur menyang stopkontak daya 12V/24V kendaraan sampeyan (soket korek api).
• AC Power (Household): Connect the AC power cord with the adapter to the refrigerator's AC input port and then to a standard household power outlet.

4.4 Apa ing kothak

Paket kasebut biasane kalebu:

• Car Refrigerator (TWW95-95 Quart) x1
• DC Power cord x1
• AC Power cord with adapter x1
• Manual pangguna x1
• Inner Basket x1

5. Instruksi Operasi

5.1 Powering On / Off

Press and hold the power button on the digital control panel to turn the refrigerator on or off.

5.2 Temperature Control (Dual Zone)

The TWW95 features dual compartments with individual temperature control. The digital display allows you to set the desired temperature for each zone.

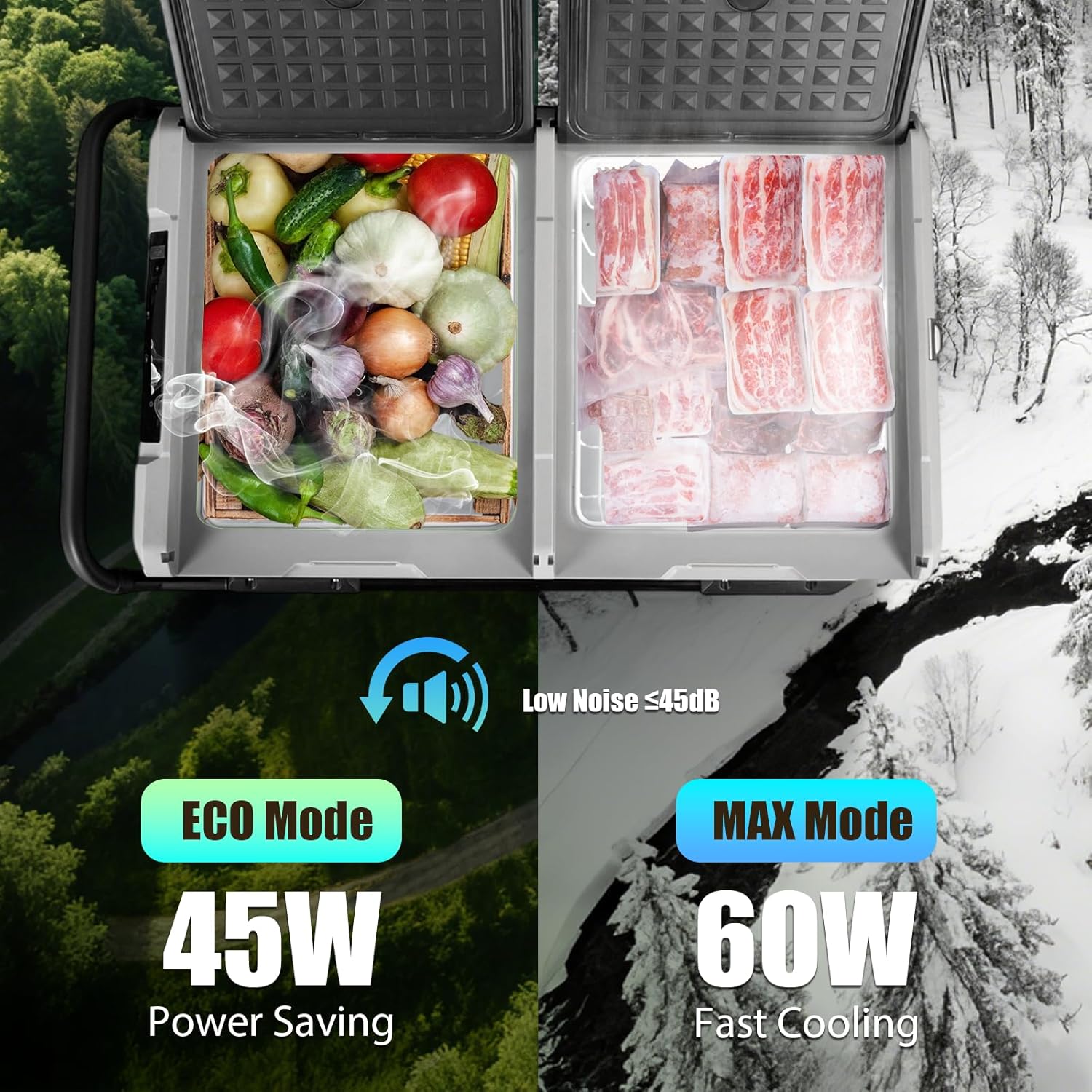

Gambar 5.1: Dual Compartments and Cooling Modes. This image shows the two distinct compartments, one set for refrigeration (vegetables) and the other for freezing (meat), along with indicators for ECO (45W, power saving) and MAX (60W, fast cooling) modes.

Gambar 5.2: Dual Zone Storage Configurations. This diagram explains how the dual zones can be configured: either both zones set for refrigeration, or one zone for freezing and the other for refrigeration, providing flexible storage options.

• Use the '+' and '-' buttons on the control panel to adjust the temperature for each compartment.
• Tampilan bakal nuduhake suhu saiki lan suhu sing disetel.
• The refrigerator will automatically adjust to maintain the set temperature.

5.3 Mode Operasi (ECO/MAX)

Your refrigerator offers two operating modes:

• Mode ECO (45W): Energy-saving mode for efficient operation when fast cooling is not required.
• Mode MAX (60W): Provides rapid cooling for quicker temperature reduction.

Switch between modes using the designated button on the control panel.

5.4 Sistem Proteksi baterei

The refrigerator features a three-level battery protection system to prevent your vehicle's battery from draining completely. You can select the desired protection level (High, Medium, Low) via the control panel settings. Refer to the detailed instructions in the full manual for specific steps on adjusting this setting.

5.5 Reversible/Detachable Door

The refrigerator door can be reversed or detached for flexible opening and easier cleaning. Consult the full manual for detailed instructions on how to safely reverse or detach the door.

6. Pangopènan

6.1 Reresik

• Tansah pedhot daya sadurunge ngresiki.
• Ngresiki lumahing interior lan njaba karo iklanamp kain lan deterjen entheng.
• Aja nggunakake pembersih abrasif utawa bahan kimia sing atos.
• Ensure the drainage plugs are clear to allow for easy cleaning and defrosting.
• The removable door design facilitates thorough cleaning of the interior compartments.

6.2 Panyimpenan

Nalika nyimpen kulkas kanggo wektu sing suwe:

• Priksa manawa unit kasebut resik lan garing.
• Ninggalake tutup rada mbukak kanggo nyegah ambune lan tuwuh jamur.
• Simpen ing papan sing garing, kanthi ventilasi sing apik, adoh saka sinar srengenge langsung lan suhu sing ekstrem.

7. Ngatasi masalah

If you encounter issues with your refrigerator, refer to the table below for common problems and solutions.

Yen masalah tetep sawise nyoba solusi kasebut, hubungi dhukungan pelanggan.

8. Spesifikasi

Detailed technical specifications for the TWW95-95 Quart model:

Gambar 8.1: Capacity and Dimensions. This image provides a visual representation of the refrigerator's external measurements (39.57 inches length, 18.31 inches width, 22.48 inches height) and internal compartment dimensions, alongside its 95 Quart (90.2 Liter) capacity, indicating how many 12oz cans, 16.9oz bottles, or 25oz bottles it can hold.

9. Warranty lan Dhukungan

9.1 Informasi babar pisan

This product comes with a standard manufacturer's warranty. Please refer to the warranty card included in your package or contact your retailer for specific warranty terms and conditions. Keep your purchase receipt as proof of purchase for warranty claims.

9.2 Dhukungan Pelanggan

For technical assistance, troubleshooting beyond this manual, or warranty inquiries, please contact the retailer or manufacturer's customer support. Contact information can typically be found on the product packaging or the retailer's websitus.
