User Manual: 2.1-Amp Bangku Grinder

Pambuka

This manual provides essential information for the safe operation, maintenance, and troubleshooting of your 2.1-Amp Bench Grinder. Please read this manual thoroughly before operating the tool to ensure proper use and to prevent injury or damage.

The Generic 6-inch Single Speed Bench Grinder is designed for efficient grinding, reshaping, and sharpening of various metal implements. It features a powerful 2.1A brushless motor operating at 3550 RPM, providing superior grinding power with quiet operation and enhanced durability. It comes equipped with two aluminum oxide grinding wheels: a 36-grit wheel for rapid material removal and an 80-grit wheel for fine, precision grinding.

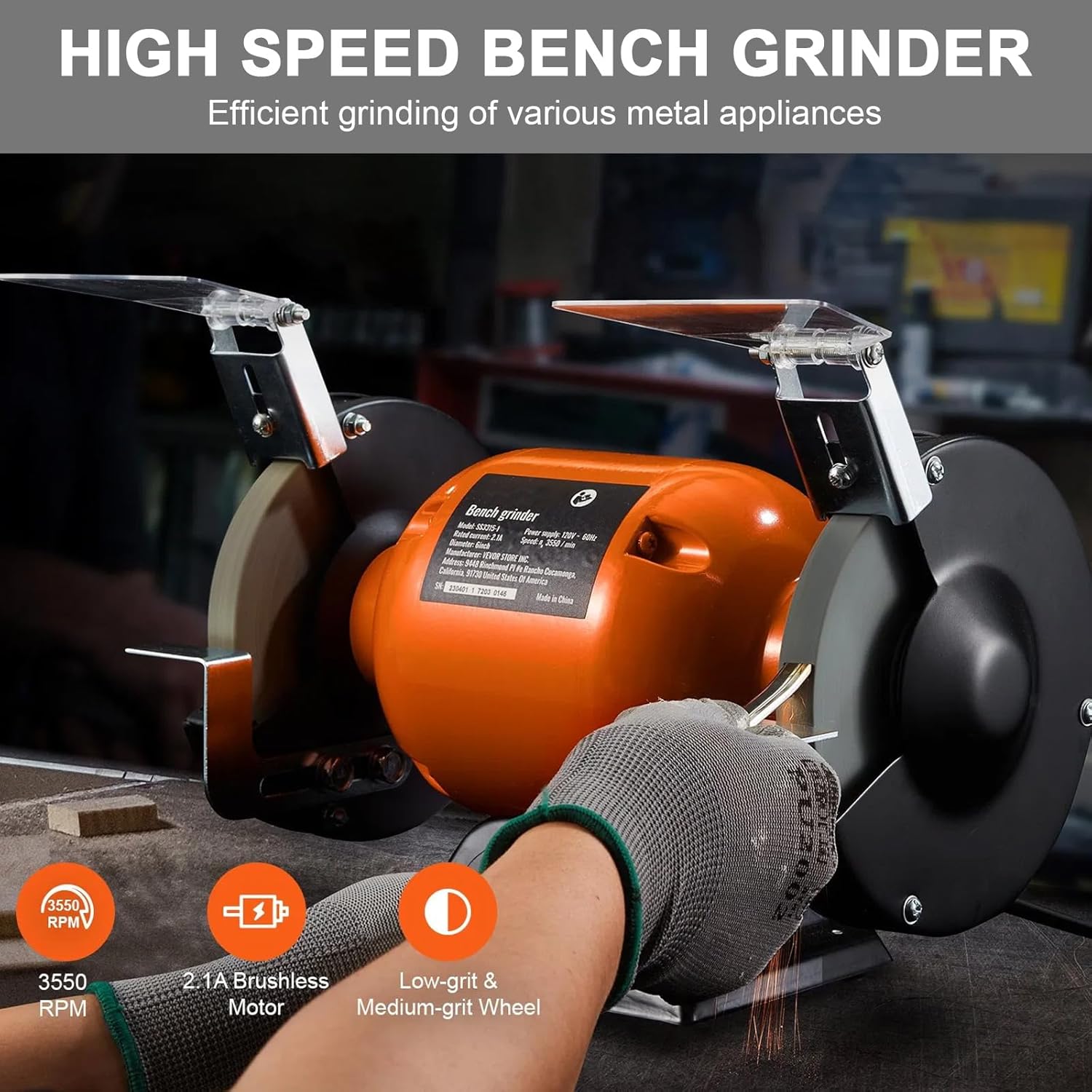

Gambar 1.1: The 6-inch bench grinder in operation, demonstrating its capability for efficient grinding of various metal appliances. The image highlights the 3550 RPM speed, 2.1A brushless motor, and the use of low-grit and medium-grit wheels.

Pandhuan Safety

Always follow basic safety precautions to reduce the risk of fire, electric shock, and personal injury when using this power tool.

• Waca Kabeh Pandhuan: Familiarize dhewe karo operasi alat lan pedoman safety sadurunge digunakake.
• Nganggo Perlindungan Mata: Always wear ANSI-approved safety goggles or a face shield when operating the grinder.
• Proteksi Tangan sing Kena Pakai: Use appropriate gloves to protect hands from sparks and abrasive materials.
• Workpiece sing aman: Always secure the workpiece firmly against the tool rest to prevent kickback.
• Maintain Proper Clearance: Ensure the tool rest is adjusted to within 1/16 inch (1.6 mm) of the grinding wheel.
• Priksa Roda: Before each use, inspect grinding wheels for cracks, chips, or damage. Replace damaged wheels immediately.
• Ventilasi sing tepat: Operate the grinder in a well-ventilated area to disperse dust and sparks.
• Jaga Kebersihan Area Kerja: Wilayah lan bangku sing rame banjur kacilakan.
• Nyegah wiwitan sing ora disengaja: Priksa manawa saklar wis ana ing posisi OFF sadurunge nyolokke piranti kasebut.
• Aja Overreach: Njaga sikil lan keseimbangan sing tepat ing kabeh wektu.
• Putus daya: Always disconnect the grinder from the power source before making adjustments, changing accessories, or performing maintenance.

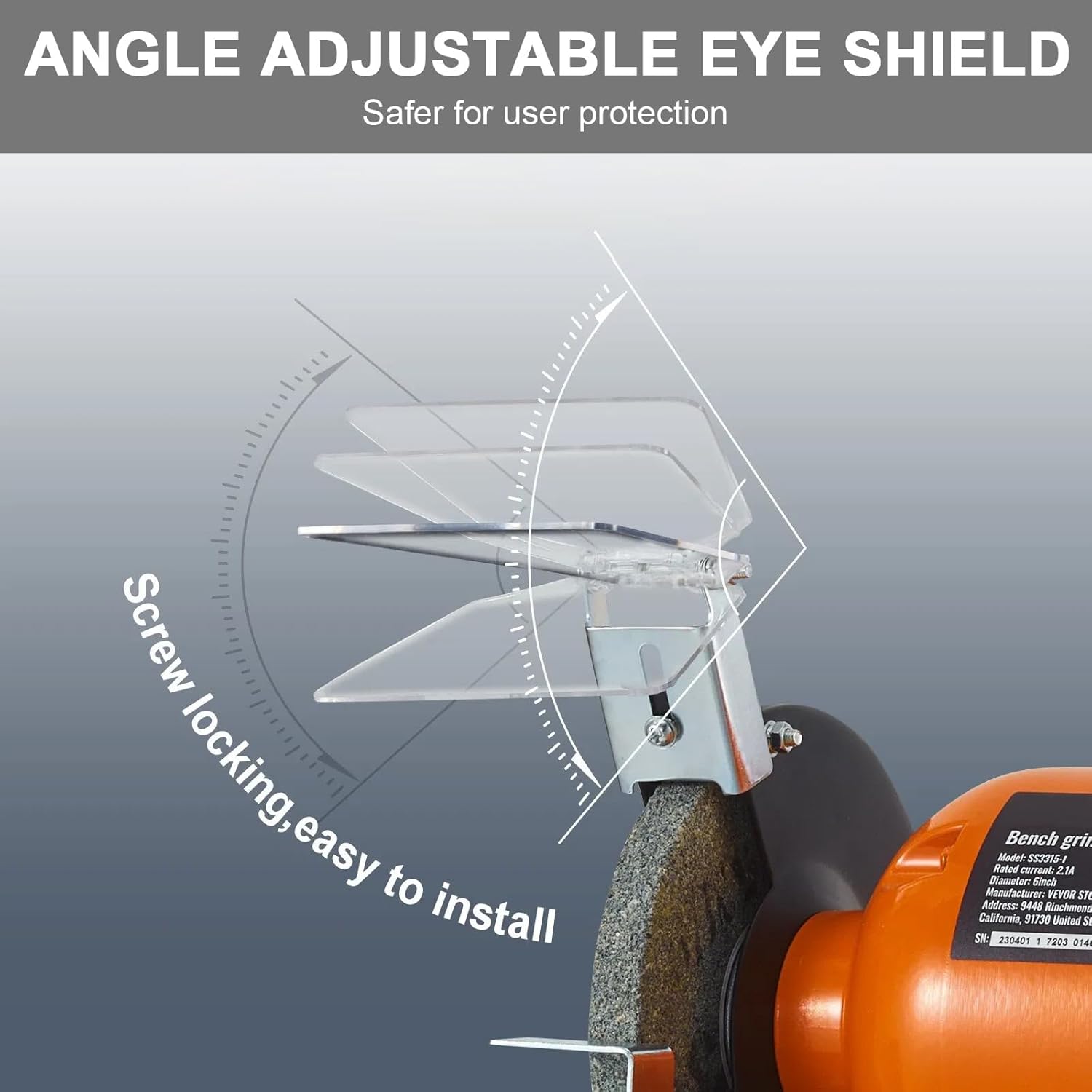

Gambar 2.1: The adjustable eye shield, crucial for user protection during operation. It features a screw locking mechanism for easy and secure installation, allowing users to adjust the angle for optimal safety.

Produk Overview

Familiarize yourself with the components of your bench grinder.

Gambar 3.1: Key components of the bench grinder, including the 36-grit and 80-grit grinding wheels, the one-button power switch, the brushless motor, the thick steel base, and the slip-proof rubber pads for stability.

Gambar 3.2: A komprehensif view saka 2.1-Amp Bench Grinder, highlighting its robust construction and the placement of the grinding wheels and protective eye shields.

Grinding Wheels

The grinder comes with two distinct aluminum oxide grinding wheels:

• 36-Grit Aluminum Oxide Wheel: Designed for rapid material removal and coarse grinding tasks.
• 80-Grit Aluminum Oxide Wheel: Ideal for fine, precision grinding and achieving accurate metal surface results.

Gambar 3.3: A visual comparison of the 36-grit and 80-grit aluminum oxide wheels, demonstrating their suitability for both high-speed material removal and precision grinding tasks.

Setup

Follow these steps to set up your bench grinder for safe and effective use.

1. Mbukak komponen: Carefully remove all components from the packaging. Verify that all parts listed in the "Included Components" section of the specifications are present.
2. Pemasangan Grinder: For stability and safety, it is highly recommended to permanently mount the bench grinder to a sturdy workbench using appropriate bolts and nuts (not included). The thick steel base is designed for secure mounting.
3. Attach Tool Rests: Securely attach the pivoting tool rests to the grinder using the provided bolts. Ensure they are firm and do not wobble.
4. Adjust Tool Rests: Adjust the tool rests so that the gap between the rest and the grinding wheel is no more than 1/16 inch (1.6 mm). This minimizes the risk of the workpiece being caught between the wheel and the rest.
5. Install Eye Shields: Attach the adjustable eye shields to the grinder. Position them to provide maximum protection for your eyes while allowing clear visibility of the workpiece. Tighten the screw locking mechanism to secure them.
6. Sambungan daya: Ensure the power switch is in the OFF position before plugging the grinder into a standard 120V AC outlet.

Gambar 4.1: The cast aluminum worktable (tool rest) demonstrating its multi-angle adjustability for increased flexibility during grinding operations. The image highlights the tool-free adjustment feature for quick and easy positioning.

Instruksi Operasi

Operasi sing tepat njamin keamanan lan kinerja sing optimal.

1. Pre-Operasi Priksa: Before starting, ensure all guards and tool rests are securely in place and properly adjusted. Verify that the grinding wheels are free from damage.
2. Daya On: Turn the grinder on using the one-button power switch. Allow the motor to reach full speed (3550 RPM) before beginning any grinding operation.
3. Teknik grinding:
   • Tahan benda kerja kanthi kenceng ing sandaran pahat.
   • Apply light, even pressure to the grinding wheel. Avoid excessive force, which can damage the wheel or motor.
   • Move the workpiece slowly and consistently across the face of the wheel to ensure even wear and a smooth finish.
   • Use the appropriate grit wheel for your task: 36-grit for rough shaping and material removal, 80-grit for fine sharpening and finishing.
4. Cooling Workpiece: Grinding generates heat. Periodically cool the workpiece in water to prevent overheating, which can alter the metal's properties.
5. Sharpening Tools: When sharpening, maintain a consistent angle against the grinding wheel. Use the tool rest to support the tool at the desired angle.
6. Daya Mati: When finished, turn the grinder off and wait for the wheels to come to a complete stop before leaving the machine.

Pangopènan

Regular maintenance ensures the longevity and safe operation of your bench grinder.

• Reresik: Regularly clean the grinder to remove dust and debris. Use a brush or compressed air. Ensure the grinder is unplugged before cleaning.
• Wheel Dressing: Over time, grinding wheels can become glazed or out of round. Use a wheel dresser to restore the wheel's cutting surface and shape.
• Ganti Roda: Replace grinding wheels when they become worn down to 1/2 inch (12.7 mm) of their original diameter, or if they show signs of damage (cracks, chips).
  1. Copot gilingan.
  2. Remove the wheel guard and retaining nut.
  3. Carefully remove the old wheel and replace it with a new one of the correct size and type.
  4. Reassemble the retaining nut and wheel guard, ensuring they are secure.
• Perawatan Motor: The brushless motor is designed for durability and requires minimal maintenance. Keep the motor housing clean and free of obstructions to ensure proper ventilation.
• Panyimpenan: Store the grinder in a clean, dry place, away from moisture and extreme temperatures.

Ngatasi masalah

Bagean iki alamat masalah umum sampeyan bisa nemoni karo gilingan bangku.

Spesifikasi

Detailed technical specifications for the 2.1-Amp Bench Grinder.

Warranty lan Dhukungan

For warranty information and customer support, please refer to the documentation provided with your purchase or contact the manufacturer directly. As this product is listed under a "Generic" brand, specific warranty details may vary. It is recommended to retain your proof of purchase for any warranty claims.

For technical assistance or inquiries regarding parts, please reach out to the seller or manufacturer through the platform where the product was purchased.
