Garvee Floating Bed Frame with RGB LED Headboard - User Manual

Pambuka

Thank you for choosing the Garvee Floating Bed Frame. This manual provides essential information for the safe assembly, operation, and maintenance of your new bed frame. Please read these instructions carefully before beginning assembly and retain them for future reference.

Image: The Garvee Floating Bed Frame, showcasing its unique floating design and integrated RGB LED lighting, set within a modern bedroom environment.

Informasi Safety

• Pasang rangka amben ing permukaan sing alus lan resik supaya ora goresan.
• Priksa manawa kabeh bolts lan sekrup wis dikencengi kanthi aman sadurunge digunakake. Priksa kanthi periodik lan kenceng maneh yen perlu.
• Do not exceed the maximum weight capacity of 800 lbs (Queen size).
• Simpen bagean cilik saka bocah-bocah nalika ngrakit kanggo nyegah bebaya keselak.
• Use only the provided hardware. Substituting parts may compromise the frame's stability and safety.
• Aja ngadeg utawa mlumpat ing pigura amben.
• Disconnect power to the LED lighting before cleaning or performing any maintenance.

Isi Paket

Sadurunge miwiti perakitan, priksa manawa kabeh komponen ana lan ora rusak. Yen ana bagean sing ilang utawa rusak, hubungi dhukungan pelanggan.

Pandhuan Majelis

Follow these steps carefully for a smooth assembly process. It is recommended to have two people for assembly.

1. Mbukak lan Ngenali Bagéan: Lay out all components on a clean, soft surface. Refer to the package contents list and the assembly diagram to identify each part.


   Gambar: Overview of the bed frame dimensions (81.9"L x 64"W x 41.7"H) and its 800 lbs weight capacity, indicating it is a Queen size.
2. Pasang Headboard: Attach the headboard support legs to the upholstered headboard section using the provided bolts and Allen key. Ensure they are securely fastened.
3. Sambungake Rel Sisih menyang Headboard: Attach the side rails to the assembled headboard using the appropriate hardware. Do not fully tighten bolts until all main frame components are connected.
4. Pasang Footboard: Connect the footboard to the open ends of the side rails. Once all four main frame corners are connected, gently tighten all bolts on the headboard, side rails, and footboard.
5. Pasang Balok Dhukungan Pusat: Place the center support beam along the middle of the frame, connecting it to the headboard and footboard. Attach the adjustable support legs to the center beam and adjust their height so they firmly touch the floor.
6. Pasang Bilah Logam: Lay the metal slats across the frame, ensuring they are evenly spaced and secured. The hook-and-loop design simplifies this step. Ensure the slats are noise-free and have a narrow distance between them for optimal mattress support.

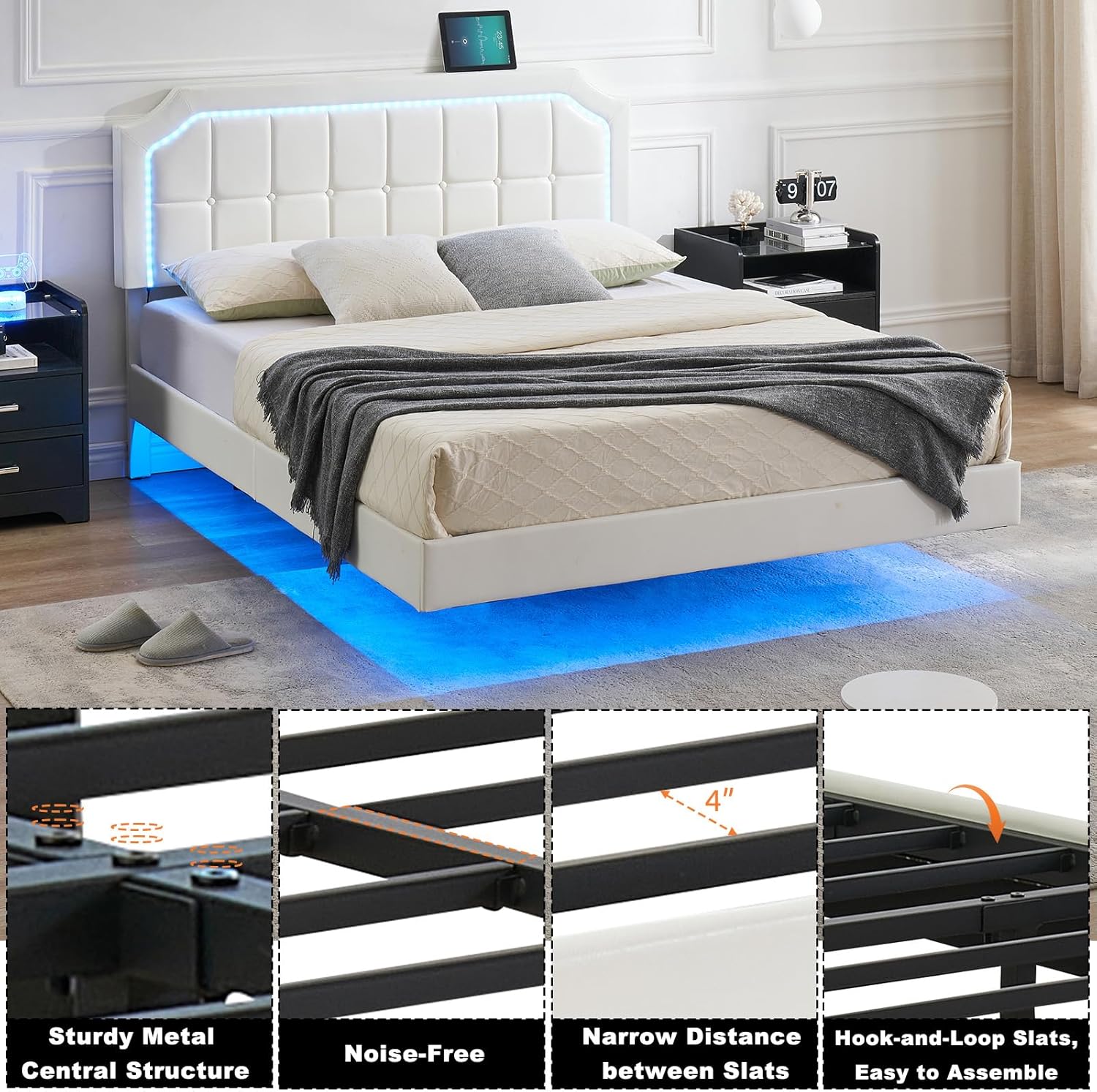

   Gambar: Detil views of the bed frame's internal structure, highlighting the robust metal central support, noise-reduction features, optimal 4-inch slat spacing, and the user-friendly hook-and-loop slat attachment system.

7. Sambungake Lampu LED: Locate the LED strip connector on the headboard and connect it to the power adapter. Plug the power adapter into a standard electrical outlet.

Instruksi Operasi

Adjusting the Headboard Height

The Garvee bed frame features an adjustable headboard, allowing you to customize its height to suit your mattress thickness and personal preference. The headboard can be adjusted between 40 and 48 inches from the floor.

• To adjust, loosen the bolts connecting the headboard to the side rails.
• Carefully slide the headboard up or down to the desired height.
• Once at the preferred height, re-tighten all bolts securely to ensure stability.

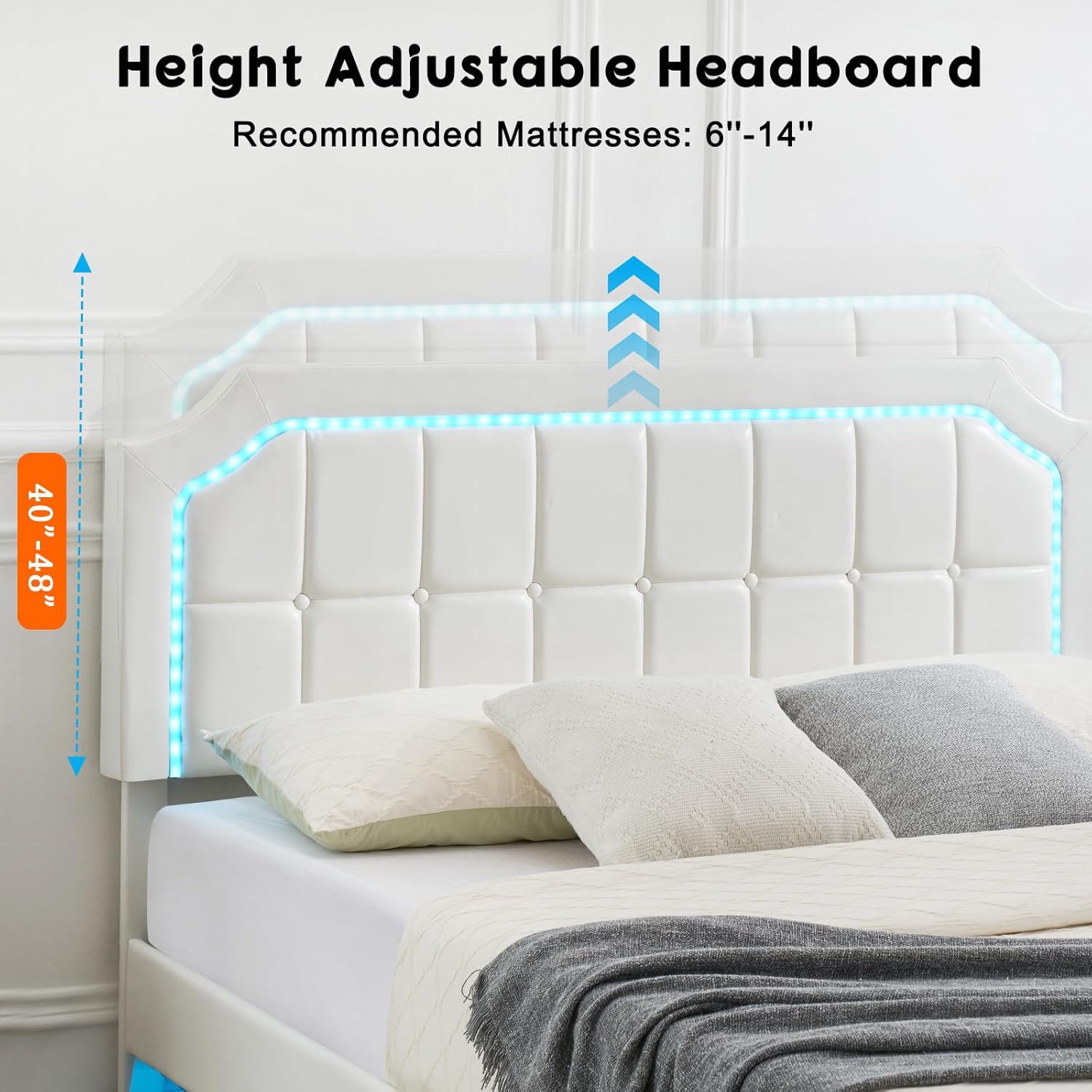

Image: Visual representation of the headboard's adjustable height feature, showing the range from 40 to 48 inches and suggesting mattress thicknesses between 6 and 14 inches for optimal fit.

Controlling the RGB LED Lighting

The integrated RGB LED lighting system offers a wide range of colors and modes to enhance your bedroom ambiance. The lighting can be controlled via the included remote control or a dedicated mobile application.

• Remote Control: Use the provided remote to turn the lights on/off, change colors, adjust brightness, and select various dynamic modes (e.g., flash, fade, strobe). Refer to the remote's specific button functions.
• Kontrol Aplikasi Seluler: For advanced features and greater customization, download the recommended mobile application (details typically found in the LED controller's separate manual or QR code). The app allows access to over 60,000 colors, music synchronization modes, microphone modes, and timing functions.

Image: The bed frame illuminated with LED lights, demonstrating the extensive color options, sound-reactive modes (mic and music), programmable timing, dynamic light patterns, and the convenience of mobile app control.

Image: A visual comparison of the bed frame's LED lighting effect during daytime and nighttime, illustrating how the ambient light enhances the room's atmosphere in different lighting conditions.

Pangopènan

• Reresik Frame: Wipe the metal and upholstered surfaces with a soft, damp cloth. For upholstered areas, use a mild soap solution if necessary, then wipe with a clean, damp kain lan garing sak tenane. Ngindhari bahan kimia sing atos utawa pembersih abrasif.

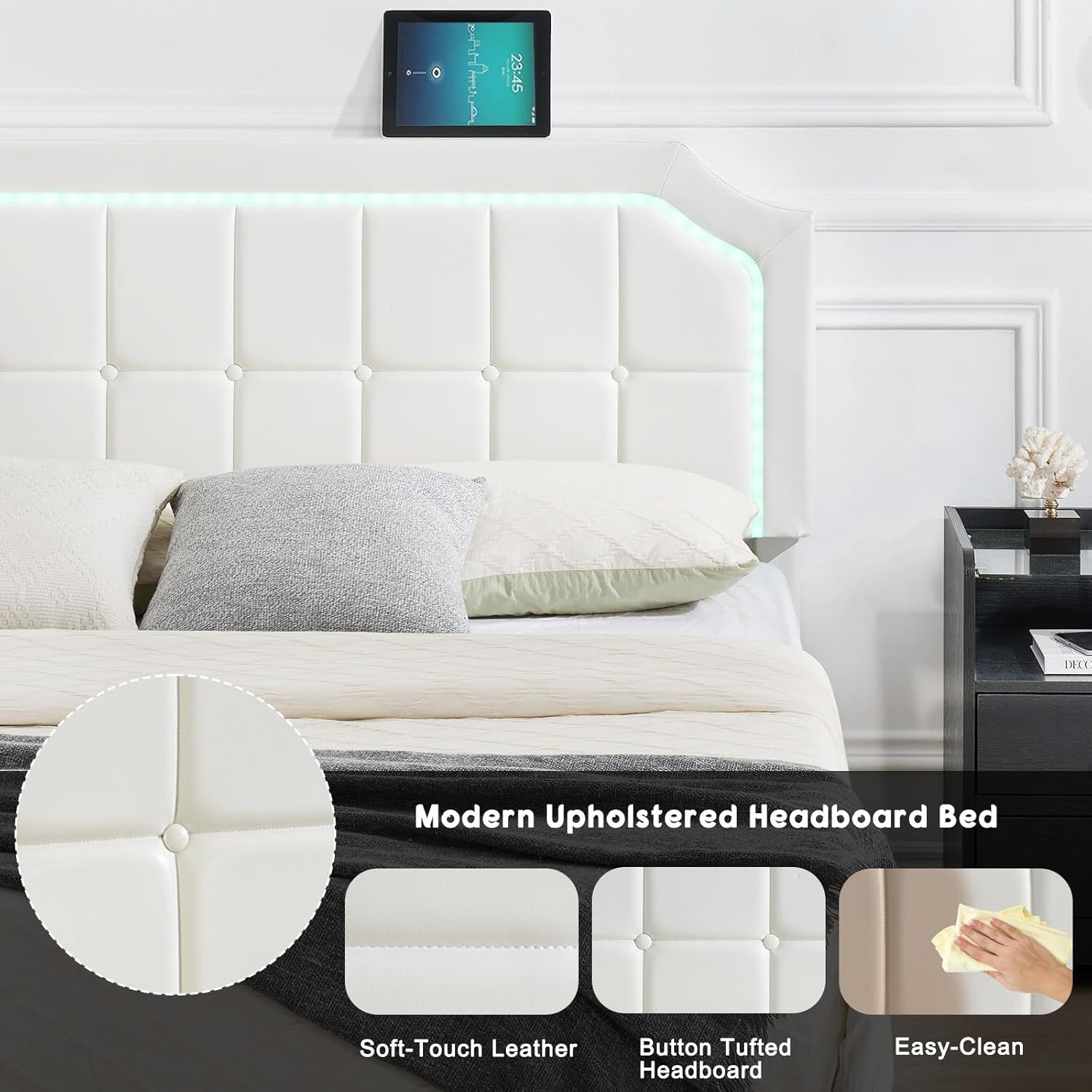

  Gambar: Detil view of the headboard's material, emphasizing its soft, leather-like feel, classic button-tufted appearance, and ease of cleaning.

• Priksa Hardware: Periodically (e.g., every 3-6 months) check all bolts and screws to ensure they remain tight. Re-tighten any loose hardware to maintain the frame's stability and prevent squeaking.
• Perawatan LED: Ensure the LED strip and power adapter are free from dust and debris. Do not attempt to repair or modify the LED system yourself.

Ngatasi masalah

Spesifikasi

• Merk: Garvee
• Model: WEWS9iUn0anLrlytGscBPQUfP
• ukuran: Kasur Ratu (Standar AS)
• Ukuran produk: Ukuran 81.9 "L x 64" W x 41.7" H
• warna: Grey (Note: Product images show white, but specifications list Grey. User manual will reflect the provided spec.)
• Jinis Rampung: Dilapisi bubuk
• Komponen sing kalebu: Headboard, Frame, Slats, Hardware, LED System
• Bobot barang: 92.5 pon
• Majelis dibutuhake: ya wis
• Kapasitas bobot: 800 lbs
• Headboard Adjustable Height: 40" - 48"
• Ketebalan kasur sing disaranake: 6" - 14"
• UPC: 199108420725

Warranty lan Dhukungan

Garvee products are manufactured with quality and durability in mind. For specific warranty details, please refer to the warranty card included with your purchase or visit the official Garvee website. If you encounter any issues or have questions regarding your bed frame, please contact Garvee customer support for assistance.

Dhukungan Pelanggan: For assistance, please visit the Garvee store on Amazon or contact their customer service directly through the contact information provided on your purchase receipt or the product packaging.
