Convector Heater User Manual

Pambuka

This manual provides essential information for the safe and efficient operation of your Convector Heater. Designed for optimal warmth and comfort, this heater features 3600 circulation heating, adjustable heat settings, and silent operation, making it suitable for various indoor environments such as homes, offices, and bedrooms. Please read this manual thoroughly before use and retain it for future reference.

Gambar 1: Ngarep view of the Convector Heater.

Pandhuan Safety Penting

Nalika nggunakake piranti listrik, pancegahan dhasar kudu tansah ditindakake kanggo nyuda resiko geni, kejut listrik, lan ciloko kanggo wong.

• Waca kabeh pandhuan sadurunge nggunakake pemanas iki.
• Pemanas iki panas nalika digunakake. Kanggo ngindhari kobong, aja nganti kulit gundhul kena ing permukaan sing panas.
• Always use the handle when moving this heater.
• Simpen bahan-bahan sing gampang kobong, kayata perabotan, bantal, sprei, kertas, sandhangan, lan gorden paling ora 3 kaki (0.9 m) saka ngarep pemanas, lan jauhake saka sisih lan mburi.
• Ati-ati banget perlu nalika sembarang mesin ingkang ndamel benter digunakake dening utawa cedhak anak utawa invalid lan nalika mesin ingkang ndamel benter kiwa operasi lan unattended.
• Tansah copot pemanas nalika ora digunakake.
• Aja operate mesin ingkang ndamel benter karo ari rusak utawa plug utawa sawise mesin ingkang ndamel benter malfunctions, wis dropped utawa rusak ing sembarang cara. Pemanas bali menyang fasilitas layanan sing sah kanggo ujian, pangaturan listrik utawa mekanik, utawa ndandani.
• Aja nggunakake njobo.
• Pemanas iki ora kanggo digunakake ing jedhing, area umbah-umbah, lan lokasi njero ruangan sing padha. Aja nemokake pemanas sing bisa dicelupake ing bathtub utawa wadhah banyu liyane.
• Aja mbukak kabel ing ngisor karpet. Aja nutupi kabel nganggo karpet, pelari, utawa tutup sing padha. Atur kabel adoh saka wilayah lalu lintas lan ora bakal kesandung.
• Kanggo medhot pemanas, mateni kontrol, banjur copot plug saka stopkontak.
• Aja nglebokake utawa ngidini obyek manca mlebu ing ventilasi utawa bukaan knalpot amarga bisa nyebabake kejut listrik utawa geni, utawa ngrusak pemanas.
• Kanggo nyegah geni, aja ngalangi asupan udara utawa knalpot kanthi cara apa wae. Aja digunakake ing permukaan sing alus, kaya amben, ing ngendi bukaan bisa diblokir.
• A pemanas wis panas lan arcing utawa sparking bagean nang. Aja nggunakake ing wilayah ngendi bensin, cat, utawa cairan sing gampang kobong digunakake utawa disimpen.
• Gunakake pemanas iki mung kaya sing diterangake ing manual iki. Sembarang panggunaan liyane sing ora dianjurake dening pabrikan bisa nyebabake geni, kejut listrik, utawa ciloko kanggo wong.
• This heater is equipped with an automatic shut-off feature for tip-over protection and overheat protection. If the heater tips over or overheats, it will automatically shut down. Unplug the heater and allow it to cool before restarting.
• The heater is constructed from fire-retardant ABS material for enhanced safety.

Figure 2: Illustration of the heater's overheating and tip-over protection features.

Produk Overview

Familiarize yourself with the components of your Convector Heater.

Figure 3: Labeled components of the Convector Heater.

• Kenop sing bisa diatur: Controls the thermostat and heat settings.
• Saluran Udara Panas: Ing endi hawa panas diusir.
• Nangani trep: Kanggo portabilitas gampang.
• Lubang Dinding: For optional wall-mounted installation.
• Cold Wind Import: Air intake vents for convection heating.
• Anti-slip Base: Provides stability for free-standing use.

Setup lan Instalasi

Instalasi Free-Standing

For free-standing use, attach the anti-slip bases (feet) to the bottom of the heater. Ensure they are securely fastened to provide stability. Place the heater on a flat, stable, and non-combustible surface.

Figure 4: Packaging contents, showing the heater, manual, and detachable feet for free-standing setup.

Instalasi Wall-Mounted

The heater can also be wall-mounted. Use the designated wall mount holes on the back of the unit. Ensure the wall is suitable for supporting the heater's weight and that proper mounting hardware (not included) is used. Consult a qualified professional if unsure about wall mounting.

Pedoman Panggonan

• Ensure adequate clearance around the heater for proper air circulation.
• Aja nyelehake pemanas langsung ing ngisor stopkontak.
• Aja nyelehake pemanas ing panggonan sing lembab banget utawa cedhak sumber banyu.

Instruksi Operasi

Powering On / Off

1. Plug the heater into a suitable electrical outlet (120V AC).
2. To turn the heater ON, rotate the lower knob (heat settings) from the "0" position to your desired heat level.
3. To turn the heater OFF, rotate the lower knob back to the "0" position and unplug the unit from the power outlet.

Nyetel setelan panas

The heater offers three heat settings:

• I (750W): Low heat setting for gentle warmth or smaller spaces.
• II (1050W): Medium heat setting for moderate warmth.
• III (1800W): High heat setting for rapid heating or larger spaces.

Rotate the lower knob to select the desired heat setting.

Nyetel Thermostat

The upper knob controls the adjustable thermostat. This allows you to set your desired room temperature.

1. Turn the lower knob to the desired heat setting (I, II, or III).
2. Rotate the upper thermostat knob clockwise to increase the desired temperature, or counter-clockwise to decrease it.
3. The heater will operate until the set temperature is reached, then automatically cycle on and off to maintain that temperature.

Figure 5: Close-up of the control knobs for thermostat and heat settings.

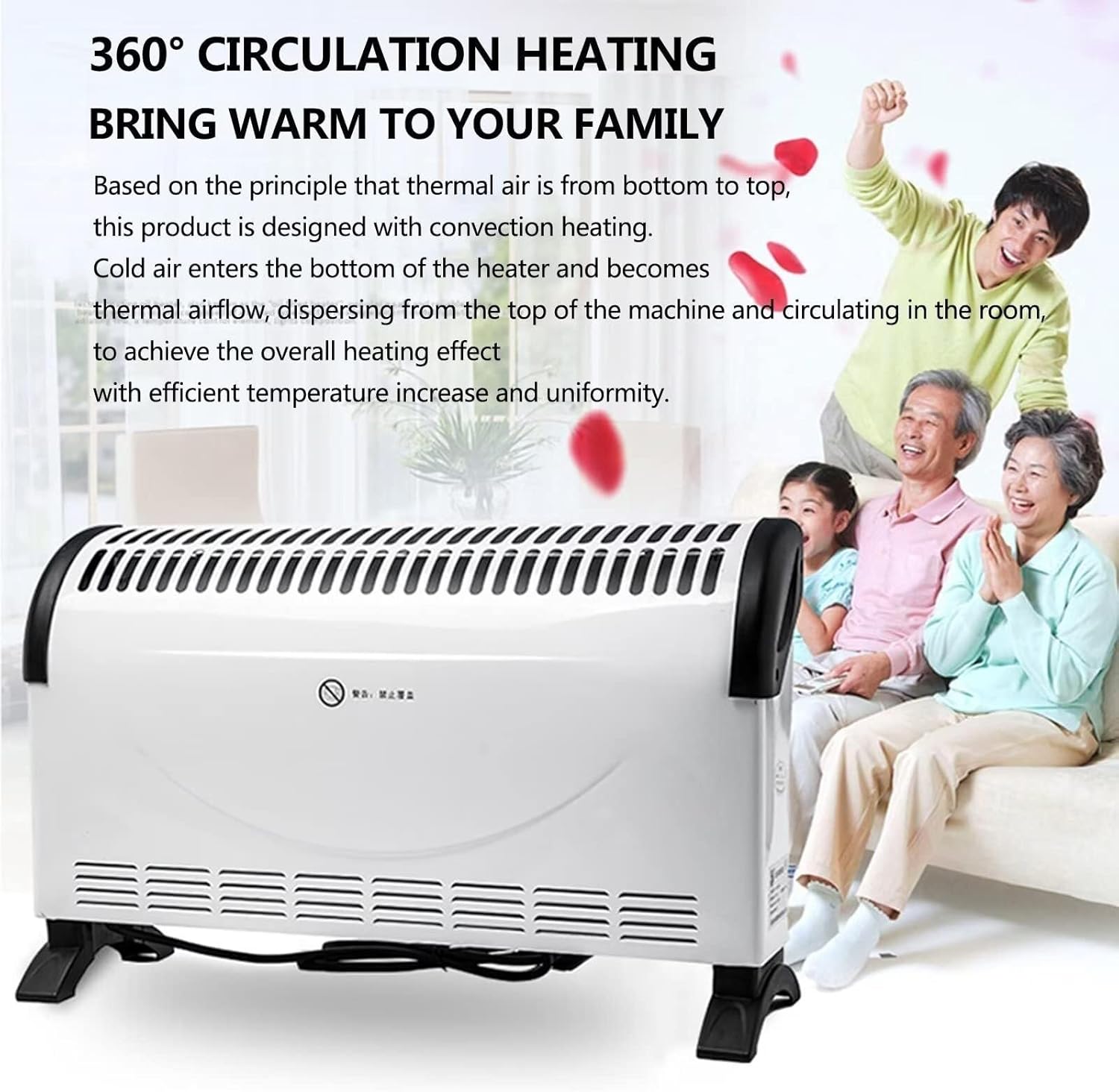

3600 Circulation Heating

This heater utilizes convection technology to distribute heat rapidly and evenly throughout the room. Cold air enters the bottom of the heater, is warmed, and then rises and disperses from the top, creating a continuous circulation for efficient and uniform heating.

Figure 6: Visual representation of the 3600 circulation heating principle.

Operasi bisu

The Convector Heater is designed for silent operation, producing no noise, radiation, or dry air. This makes it ideal for environments where quiet is preferred, such as bedrooms or nurseries.

Figure 7: The heater's silent and non-radiative operation, suitable for sensitive users.

Pangopènan

Reresik

• Tansah copot pemanas lan kelangan nganti rampung sadurunge ngresiki.
• Gunakake alus, damp kain kanggo ngilangke permukaan njaba pemanas.
• Aja nggunakake pembersih abrasif utawa pelarut amarga bisa ngrusak permukaan.
• Aja nyemplungake pemanas ing banyu utawa ngidini banyu netes menyang interior.
• Periodically clean the air intake and outlet vents with a vacuum cleaner or soft brush to remove dust and debris.

Panyimpenan

Yen ora digunakake, simpen pemanas ing papan sing adhem lan garing. Disaranake kanggo nyimpen ing kemasan asli kanggo nglindhungi saka bledug lan karusakan.

Ngatasi masalah

Spesifikasi

Note: Product dimensions and weight provided in the source data (3"D x 2"W x 1"H and 1.76 ounces) appear to be placeholder values and may not reflect the actual physical size and weight of the heater as depicted in images. Please refer to the product packaging for accurate specifications.

Gambar 8: Dimensi produk (520mm x 330mm x 160mm).

Warranty lan Dhukungan

For warranty information and customer support, please refer to the documentation included with your product or contact the manufacturer directly. Keep your purchase receipt as proof of purchase.

Protection plans are available for extended coverage. Please refer to the retailer's website for details on available protection plans.
