1. Pambuka
This manual provides essential information for the safe and efficient use of your DATOU BOSS LiFePO4 Battery 12V 100Ah. Please read this manual thoroughly before installation and operation. Retain this manual for future reference.

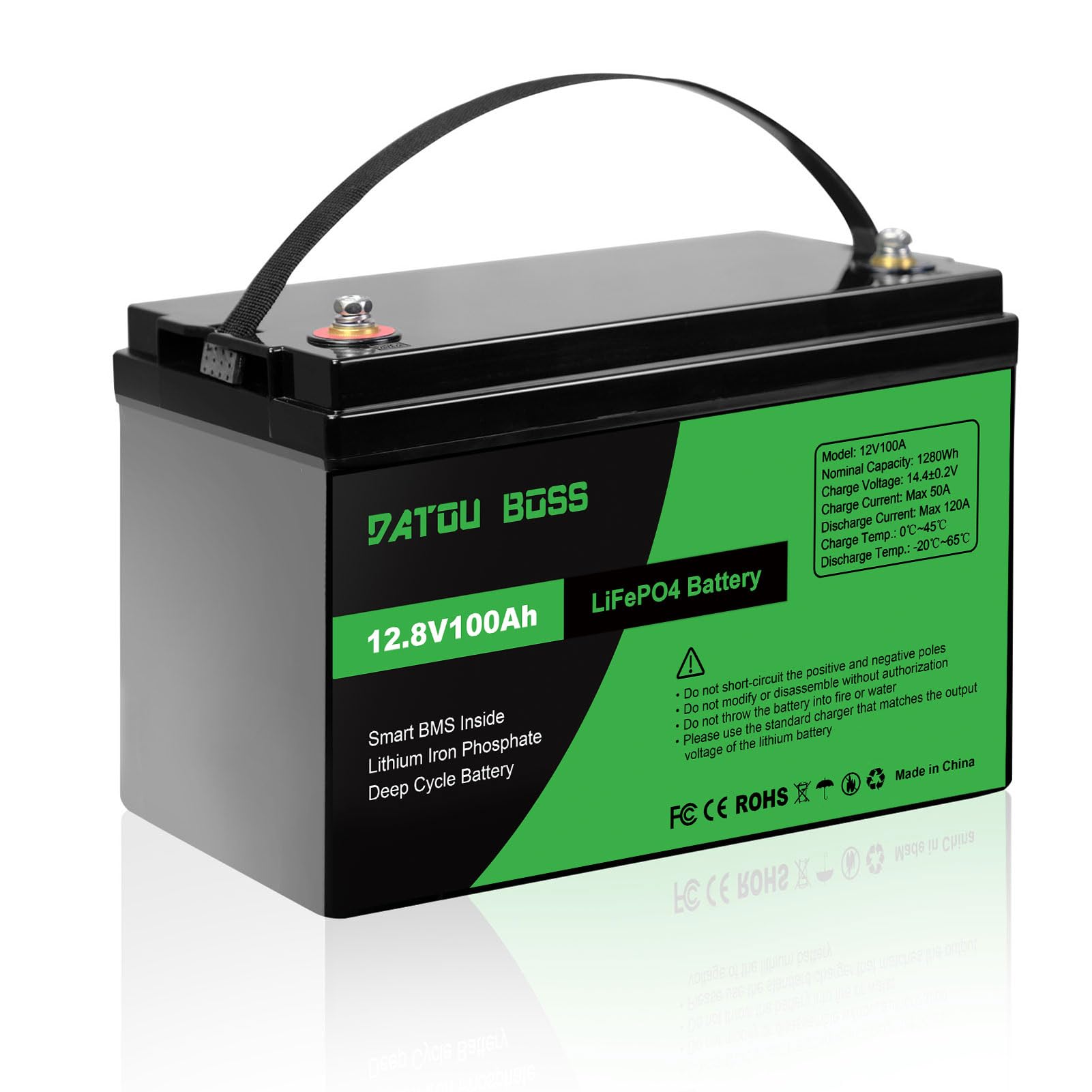

Image 1.1: DATOU BOSS 12V 100Ah LiFePO4 Battery. This image shows the overall appearance of the battery unit.
2. Informasi Safety
Always observe the following safety precautions to prevent injury or damage to the battery and connected equipment.
- Aja short-circuit terminal positif lan negatif.
- Aja ngowahi utawa mbongkar baterei.
- Avoid exposing the battery to fire or water.
- Priksa manawa ventilasi sing apik nalika ngisi lan ngosongake daya.
- Use only chargers compatible with LiFePO4 batteries.
- Do not connect batteries with different chemistries or voltages.
- Tetep adoh saka bocah-bocah.
Image 2.1: Battery Management System (BMS) Protection. This diagram illustrates the built-in protections against over-charge, over-discharge, short circuit, overload, and overheating.
The integrated Battery Management System (BMS) provides protection against over-charge, over-discharge, over-current, short circuit, and over-temperature conditions, enhancing safety during use.
3. Produk Liwatview lan Fitur
The DATOU BOSS 12V 100Ah LiFePO4 battery is designed for various applications, offering high performance and durability.
3.1 Fitur Utama
- Umur Siklus Dhuwur: Offers 8000+ deep cycles, providing a long operational lifespan.
- Desain entheng: Approximately 1/3 the weight of comparable lead-acid batteries, featuring a non-metallic belt handle for easy portability.
- BMS Terpadu: Built-in 120A Battery Management System protects against common electrical faults.
- Suhu Operasi Wide: Designed for charging temperatures from -20°C to 55°C and discharging temperatures from 0°C to 60°C.
- IP65 anti banyu: Nyedhiyakake perlindungan saka bledug lan banyu sing mlebu.
Image 3.1: Battery Specifications and Dimensions. This image details the battery's capacity (12.8V 100Ah, 1280Wh), maximum charging current (50A), maximum discharge current (120A), and physical dimensions (33cm x 17cm x 21cm).
3.2 Capacity Expansion
The battery supports both series and parallel connections, allowing for system expansion up to a maximum of 4S4P (51.2V 400Ah) to achieve higher voltage and capacity configurations.

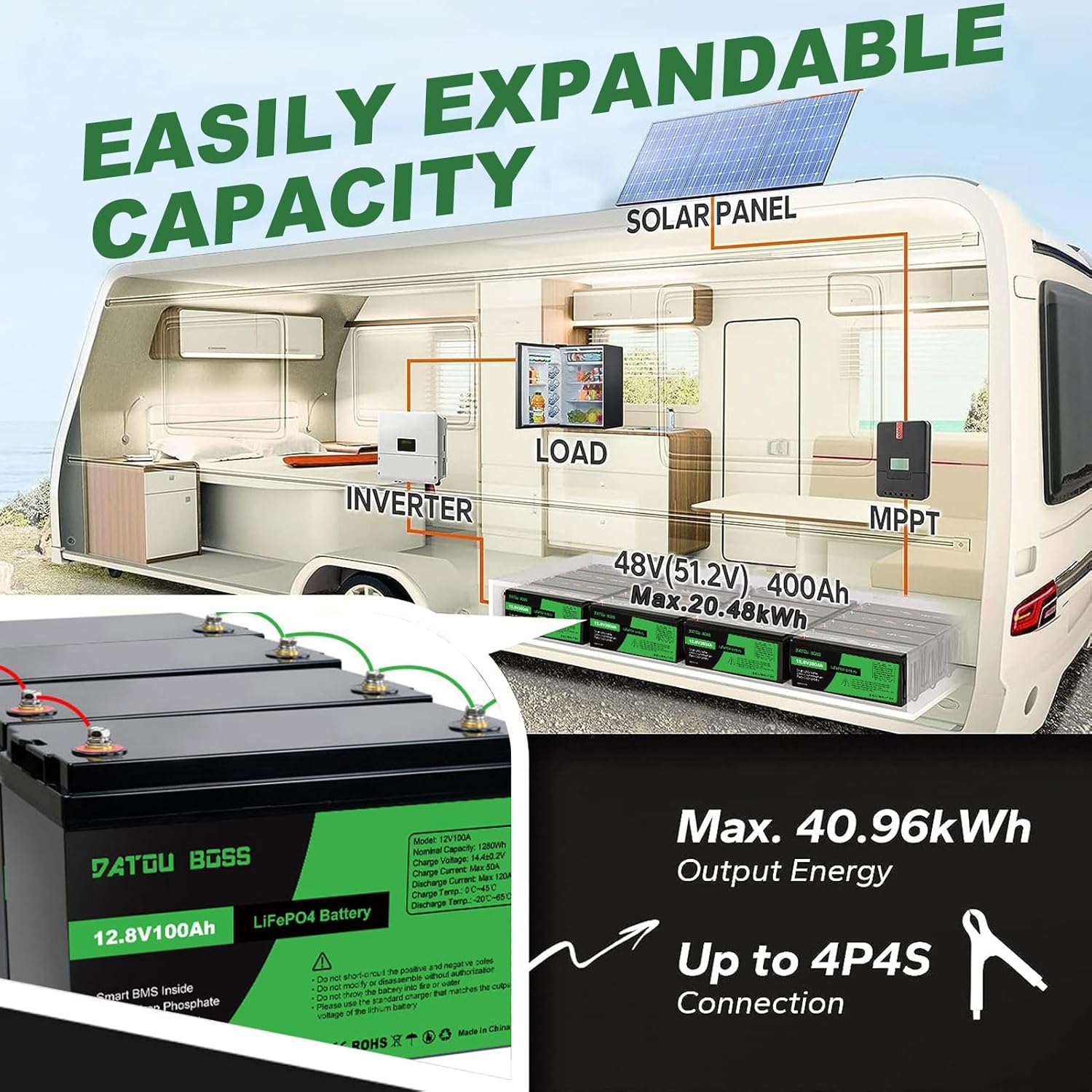

Image 3.2: Expandable Capacity. This illustration demonstrates how multiple batteries can be connected in series and parallel to create a larger battery system, such as a 4S4P 51.2V 400Ah system with 20.48kW output power.
3.3 Adwantages Over Lead-Acid Batteries
LiFePO4 batteries offer significant advantages compared to traditional lead-acid batteries, including longer lifespan, lighter weight, and higher depth of discharge.
Image 3.3: Comparison with Lead-Acid Batteries. This image highlights the differences in weight, size, lifespan, and cycle times between LiFePO4 and lead-acid batteries.
3.4 Aplikasi Umum
This LiFePO4 battery is suitable for a wide range of applications, including:
- Electric Vehicles and Recreational Vehicles (RVs)
- Sistem Panyimpenan Energi Ngarep
- Golf Carts and Boathouses
- Trolling Motors and E-Scooters
- Lighting and Fish Finders
- UPS Backup Power Supply
- Home Solar Equipment
Image 3.4: Diverse Applications. This image displays various scenarios where the battery can be used, such as solar-powered homes, RVs, boats, and general energy storage.
3.5 Power Output Examples
The battery can power various appliances for extended periods, making it suitable for off-grid and portable power needs.
Image 3.5: Appliance Run Times. This image provides examples of how long the battery can power common household appliances, such as a blender (500W for 7.6 hours) or a microwave (1000W for 3.8 hours).
4. Persiyapan lan Instalasi
4.1 Inspeksi Awal
Upon receiving the battery, inspect it for any visible damage. If damage is found, contact your supplier immediately.
4.2 Pedoman Sambungan
- Priksa manawa kabeh sambungan aman lan terisolasi kanthi bener.
- Sambungake terminal positif menyang positif lan negatif menyang negatif.
- For series or parallel connections, ensure all batteries are of the same type, capacity, and state of charge before connecting.
- Use appropriate gauge cables for your application to prevent overheating.
Image 4.1: Solar Panel Connection. This diagram illustrates a typical setup involving a solar panel, MPPT controller, and the LiFePO4 battery for charging.
4.3 Pemasangan
Mount the battery in a stable, well-ventilated area, away from direct sunlight, heat sources, and flammable materials. Ensure the battery is secured to prevent movement.
5. Instruksi Operasi
5.1 Pengisian
- Use a dedicated LiFePO4 battery charger with appropriate voltage lan setelan saiki.
- Dianjurake pangisian daya voltage: 14.4V - 14.6V.
- Maximum charging current: 50A.
- Charging temperature range: -20°C to 55°C.
- Avoid charging below 0°C without a low-temperature charging function, as this can damage the battery.
5.2 Ngilangi
- Arus debit terus-terusan maksimum: 120A.
- Discharging temperature range: 0°C to 60°C.
- The BMS will automatically cut off power if the discharge current or temperature exceeds safe limits.
6. Pangopènan
- Pengisian Reguler: If the battery is not in regular use, it is recommended to charge it every three months to prolong its lifespan.
- Inspeksi Terminal: Priksa terminal batere kanthi periodik kanggo korosi utawa sambungan sing kendho. Resikna yen perlu.
- Panyimpenan: Store the battery in a cool, dry place, ideally at a state of charge between 50% and 80%. Avoid extreme temperatures.
- Reresik: Ngresiki baterei casinnganggo kain garing. Aja nggunakake pelarut utawa pembersih abrasif.
7. Ngatasi masalah
If you encounter issues with your battery, refer to the following common problems and solutions. For complex issues, contact customer support.
| Masalah | Kemungkinan Penyebab | Solusi |
|---|---|---|
| Baterei ora ngisi daya | Charger not connected, faulty charger, BMS protection activated (over-discharge) | Check charger connection and functionality. Ensure charger is compatible. If BMS is active, try a low-current charge to reactivate. |
| Ora ana output daya | Loose connections, BMS protection activated (over-discharge, over-current, short circuit), battery fully discharged | Check all cable connections. Charge the battery. If BMS is active, remove load and allow it to reset. |
| Baterei overheating | Excessive load, poor ventilation, high ambient temperature | Reduce load. Ensure adequate ventilation around the battery. Operate within specified temperature ranges. BMS will shut down if temperature is too high. |
8. Spesifikasi
| Fitur | Nilai |
|---|---|
| Nomer Model | DT-12V-100Ah |
| Nominal Voltage | 12.8V |
| Kapasitas Nominal | 100 Ah |
| Energi | 1280Wh |
| Maks. Arus Pengisian Terus-terusan | 50A |
| Maks. Arus Discharge Terus-terusan | 120A |
| Rekomendasi Biaya Voltage | 14.4V - 14.6V |
| Rentang Suhu Ngisi daya | -20°C nganti 55°C |
| Rentang Suhu Discharge | 0°C nganti 60°C |
| Siklus Urip | 8000+ siklus (kanthi 80% DoD) |
| Ukuran (L x W x H) | 32.99 x 16.99 x 21.49 cm |
| Bobot | Approximately 1/3 the weight of a comparable lead-acid battery |
| BMS | BMS 120A sing wis dibangun |
| Rating anti banyu | IP65 |
Note: The specific gram weight provided in some product data appears to be a typographical error for a 100Ah battery. LiFePO4 batteries are significantly lighter than lead-acid equivalents, typically around 1/3 the weight.
9. Warranty lan Dhukungan
Kanggo informasi garansi, dhukungan teknis, utawa pitakon layanan, hubungi langsung lokasi tuku utawa pabrikan. Simpen kuitansi tuku minangka bukti tuku.
