Seesii 4D Laser Level Instruction Manual

1. Pambuka lan Swaraview

The Seesii 4D Laser Level is a high-precision instrument designed for various leveling and alignment tasks in construction, home improvement, and professional settings. It features two 360° horizontal planes and two 360° vertical planes, providing comprehensive coverage for accurate measurements. The bright green laser lines offer superior visibility, even in well-lit indoor environments.

This manual provides detailed instructions on setting up, operating, and maintaining your Seesii 4D Laser Level to ensure optimal performance and longevity.

Image: Seesii 4D Laser Level with its complete set of accessories.

2. Isi Paket

Priksa manawa kabeh item ing ngisor iki kalebu ing paket sampeyan:

• Seesii 4D Laser Level Unit
• Kasus Carry Hard
• 2 x 2400mAh Li-ion Rechargeable Batteries
• Pangisi daya baterei
• Mini Tripod Base
• Pangkalan Angkat
• Target Plate
• Multifunction Magnetic Bracket
• Upper Wall Iron Plate
• 3/8" Adapter
• Remote Control
• Manual Instruksi (dokumen iki)

Image: Complete package contents of the Seesii 4D Laser Level.

3. Setup

3.1 Instalasi lan Ngisi daya baterei

Before first use, ensure the batteries are fully charged. Insert the two rechargeable Li-ion batteries into the designated compartment on the laser level. Connect the charger to the unit and a power outlet. The charging indicator will show the charging status.

Image: Battery installation and charging for the laser level.

3.2 Penempatan lan Pemasangan Awal

Place the laser level on a stable, flat surface. For optimal performance, ensure the surface is within the self-leveling range (±3°). The unit can be placed directly on the floor, on the mini tripod, or on the lifting base for height adjustment. For wall applications, use the magnetic bracket with the upper wall iron plate.

Image: Demonstrating multiple fixing methods for the laser level.

4. Mode operasi

4.1 Mode Leveling Mandiri

In self-leveling mode, the laser level automatically levels itself within a range of ±3°. If the surface inclination exceeds this range, the device will sound an alarm and the laser lines will flash continuously, indicating that it is out of level. Adjust the position of the laser level until it self-levels.

Image: Self-leveling and manual/tilt mode functionality.

Video: Wis rampungview of the Seesii 4x360 Self-Leveling Laser Level, demonstrating its features and operation.

4.2 Manual/Tilt Mode

To activate manual mode, long-press the brightness key on the control panel for 3 seconds. In this mode, the self-leveling function is disabled, allowing the device to be used at any angle. This is useful for projecting oblique lines, such as for staircase installations or decorative patterns.

The remote control allows for convenient switching between horizontal and vertical lines, as well as adjusting brightness levels without directly touching the unit.

Image: Wireless remote control and brightness adjustment features.

Video: Demonstrates the various features of the Seesii 4x360 Self-Leveling Laser Level, including its operating modes.

5. Aplikasi lan Panggunaan

The Seesii 4D Laser Level is versatile and suitable for a wide range of applications:

• Tiling: Project precise horizontal and vertical lines for floor and wall tiling.
• Gambar gantung: Ensure perfect alignment for multiple frames.
• Instalasi Kabinet: Achieve level and plumb installations for kitchen or bathroom cabinets.
• Instalasi Drywall: Guide the placement of studs and drywall sheets.
• Kerja Listrik: Align outlets, switches, and lighting fixtures.
• Staircase Layout: Use manual mode to project accurate oblique lines for stair stringers.

Image: 4x360° laser lines for multiple applications.

Video: A professional demonstration of the Seesii 4D Green Beam Laser Level in various construction and alignment scenarios.

6. Informasi baterei

The Seesii 4D Laser Level comes with two 5V/2400mAh Li-ion batteries, providing over 8 hours of continuous use. Always use the provided charger for recharging. Do not use damaged batteries or chargers. Store batteries in a cool, dry place away from direct sunlight and extreme temperatures.

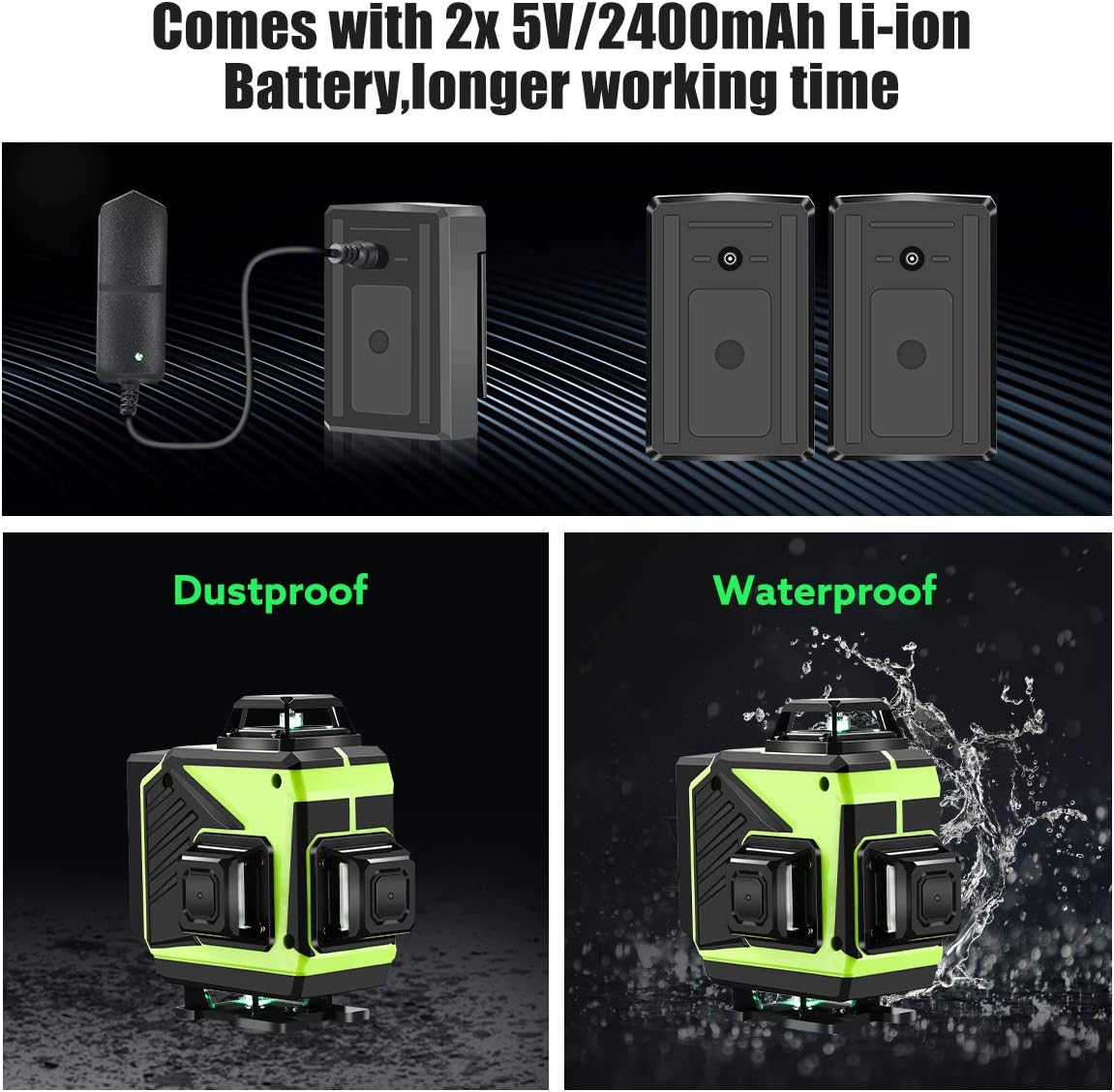

Image: Battery features and charging.

7. Pangopènan

• Reresik: Gunakake alus, damp cloth to clean the exterior of the laser level. Do not use abrasive cleaners or solvents. Keep the laser emission windows clean for clear projection.
• Panyimpenan: When not in use, store the laser level in its hard carry case in a dry, dust-free environment. Ensure the pendulum lock is engaged before storage to protect the internal mechanism.
• Priksa kalibrasi: Periodically check the accuracy of the laser level. If you suspect it is out of calibration, refer to the troubleshooting section or contact customer support.
• Perlindungan Lingkungan: The unit is designed to be dustproof and waterproof, but avoid prolonged exposure to extreme conditions or direct water immersion.

Image: Portable carrying case for easy transport and storage.

8. Ngatasi masalah

9. Spesifikasi

10. Warranty lan Dhukungan

Seesii nawakake a 12-sasi babar pisan winates for every Seesii line laser. In case of any issues or questions, professional customer service is available 24 hours a day.

For support, please refer to the contact information provided with your product packaging or visit the official Seesii websitus.

Note: Warranty terms and conditions may vary. Please retain your proof of purchase for warranty claims.
