Blue Star 5HW18ZCW1 Split AC User Manual

1. Produk Liwatview

The Blue Star 5HW18ZCW1 is a 1.5 Ton, 5 Star rated Split Air Conditioner designed for efficient cooling. This manual provides essential information for the safe and effective use of your AC unit.

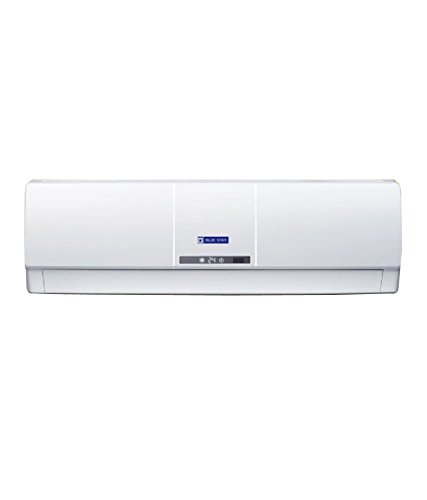

Figure 1: Blue Star 5HW18ZCW1 Split AC Indoor Unit

Fitur utama:

• Split AC with 1.5 ton capacity.
• Energy Rating: 5 Star for energy efficiency.
• Fan Modes: Auto, high, medium, low, auto mode, sleep mode, turbo cooling, and no heat.
• Advanced Filtration: Silver ion, dust filter, vitamin C, and anti-acarien filters.
• Convenience: Auto restart with memory function.
• Special Feature: Anti Bacterial Filter.

2. Pandhuan Instalasi

Proper installation is crucial for the optimal performance and longevity of your Blue Star Split AC. Please ensure all pre-installation requirements are met and follow the standard installation procedures.

2.1 Pre-Installation Site Readiness

Before installation, verify the following site conditions:

• A separate Miniature Circuit Breaker (MCB) of at least 25 A and a 15 A plug point must be provided for the AC unit.
• In areas with power fluctuations, a stabilizer with high voltage/low voltage cut-off functionality is recommended.
• Ensure there is adequate provision for the outdoor unit, considering accessibility, safety, and necessary permissions. Installation will not proceed if these conditions are not met.

2.2 Standard Installation Steps

The following steps are typically covered under standard installation:

1. Wall Drilling: Drilling on the wall to create a cavity or hole to facilitate routing of the pipes and tubes from the indoor unit to the outdoor unit.
2. Sambungan pipa: Installation of the copper and drainage pipes, connecting the indoor unit to the outdoor unit using standard wire/pipe length provided by the manufacturer.
3. Stabilizer Connection: Connection of a separately purchased stabilizer and electrical connections to the AC unit.
4. Priksa kinerja: Cooling performance check and product demonstration after installation.

2.3 Services Not Covered Under Standard Installation

The following services are not included in standard installation and may incur additional charges:

• Wiring extension from the electricity meter to the installation site, power point/MCB fitting, and any other electrical work.
• Any extra copper wire length that might be needed beyond the standard provided length.
• Installation grill/glass cutting and welding work.
• Core cutting for wall penetration.
• Dismantling or shifting of an old AC unit.

3. Instruksi Operasi

Your Blue Star 5HW18ZCW1 Split AC is operated via a remote control. Familiarize yourself with the remote's functions for optimal comfort.

3.1 Operasi dhasar

• Daya On/Off: Use the dedicated button on the remote to turn the unit on or off.
• Pangaturan suhu: Use the up/down arrows to set your desired room temperature.
• Pilihan Mode: Cycle through various modes such as Cool, Fan, Dry, and Auto using the 'Mode' button.

3.2 Fan Speed and Special Modes

• Kacepetan Fan: Select from Auto, High, Medium, or Low fan speeds to control airflow.
• Mode Otomatis: The AC automatically adjusts settings based on the room temperature.
• Mode Turu: Ngoptimalake suhu lan kecepatan kipas kanggo turu sing nyaman nalika ngirit energi.
• Turbo Cooling: Provides rapid cooling to quickly reach the desired temperature.
• Ora Panas: This model is designed for cooling only and does not provide heating functionality.
• Miwiti maneh otomatis: Ing cilik saka daya outage, unit bakal kanthi otomatis miwiti maneh karo setelan pungkasan sawise daya dibalèkaké.

4. Pangopènan

Regular maintenance ensures the efficiency and longevity of your AC unit. Always disconnect power before performing any maintenance.

4.1 Reresik Filter

Your AC is equipped with multiple filters for improved air quality:

• Filter bledug: Clean the dust filter every two weeks or more frequently depending on usage and air quality. Remove the filter, wash it with mild detergent and water, rinse thoroughly, and dry completely before reinserting.
• Silver Ion, Vitamin C, and Anti-Acarien Filters: These specialized filters contribute to cleaner air. Refer to your detailed product manual for specific cleaning or replacement instructions for these advanced filters.
• Filter Anti Bakteri: This filter helps in preventing bacterial growth. Regular inspection and cleaning as per the detailed manual are recommended.

4.2 Perawatan Umum

• Wipe the indoor unit's exterior with a soft, dry cloth. Do not use harsh chemicals or abrasive cleaners.
• Ensure the outdoor unit is free from obstructions like leaves or debris to maintain proper airflow.
• Schedule professional servicing annually to ensure all components are functioning correctly and to clean internal parts.

5. Ngatasi masalah

If you encounter issues with your AC, refer to the following basic troubleshooting steps. For complex problems, contact customer support.

• Ora Daya: Check if the AC is properly plugged in and if the MCB is in the 'ON' position. Verify power supply to the outlet.
• Ora Ngademake kanthi Efektif: Ensure all doors and windows are closed. Clean the air filters. Check if the temperature setting is appropriate.
• Suara sing ora biasa: Minor noises during operation are normal. If you hear loud or unusual sounds, turn off the unit and contact service.
• Kebocoran banyu: Check if the drainage pipe is clear and not blocked or kinked.

6. Spesifikasi

7. Warranty lan Dhukungan

Your Blue Star 5HW18ZCW1 Split AC comes with a warranty. Please refer to the warranty card included in the packaging for detailed terms and conditions.

7.1 Apa sing ana ing kothak:

• 1 Unit Utama
• kertu babar pisan

7.2 Dhukungan Pelanggan:

For any service requests, technical assistance, or warranty claims, please contact Blue Star customer support. Keep your purchase receipt and warranty card handy when contacting support.
